[Bank 1/Intake]

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Disconnect the camshaft position sensor connector (A).
  3. Remove the sensor by loosening the mounting bolt (B).

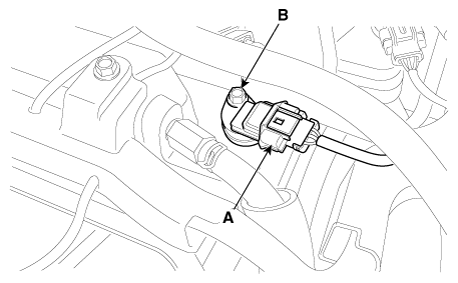

Fig 1: Camshaft Position Sensor Connector And Mounting Bolt
G12161375Courtesy of KIA MOTORS AMERICA, INC.
