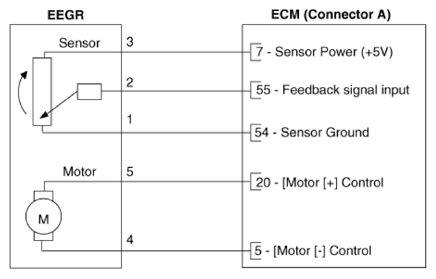

Home › Kia › 2018 › Niro Plug-In Hybrid EX Premium › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System (PHEV) › Electric EGR Control Valve › Schematic Diagrams › Circuit Diagram
