Interior 2 Antenna

  1. Disconnect the negative (-) battery terminal.
  2. Remove the floor console assembly.

    (Refer to Body - " FLOOR CONSOLE ASSEMBLY  ")

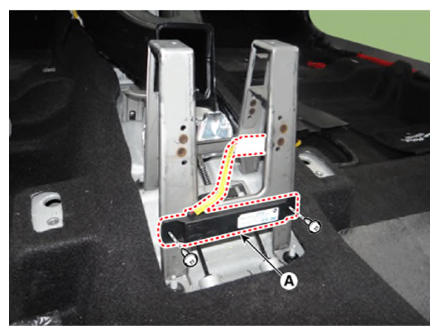

  3. Remove the interior 2 antenna (A) after loosening the mounting screws and disconnecting the connector.
    G12704246Courtesy of KIA MOTORS AMERICA, INC.
