Liftgate Open Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the liftgate latch.

    (Refer to Body - " LIFTGATE LATCH  ")

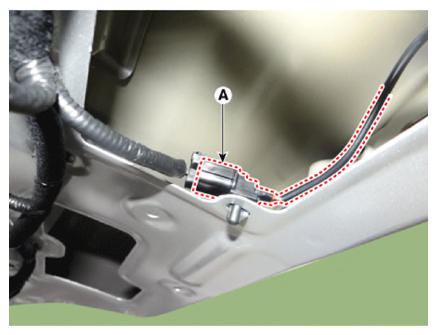

  3. Disconnect the liftgate open switch connector (A).
    G12704253Courtesy of KIA MOTORS AMERICA, INC.

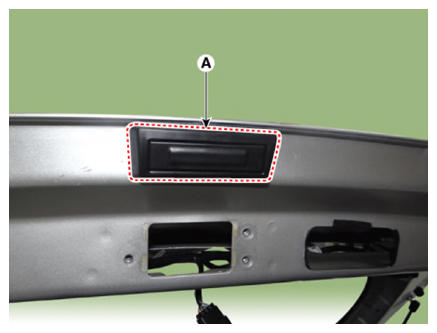

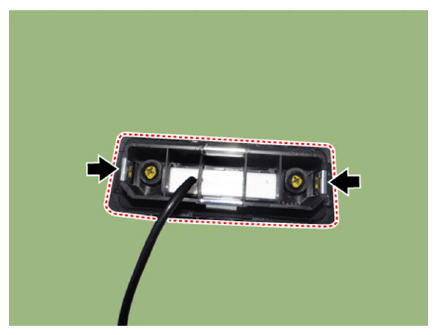

  4. Remove the liftgate open switch assembly (A) after pushing mounting hooks.
    G12704254Courtesy of KIA MOTORS AMERICA, INC.
    G12704255Courtesy of KIA MOTORS AMERICA, INC.
