Repair Procedures: Removal

Remove the tire.

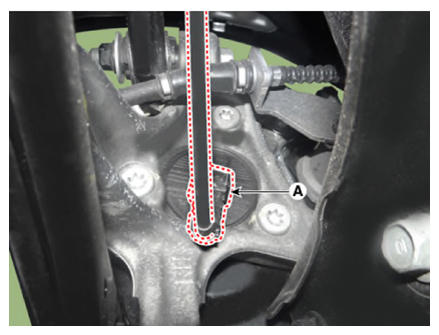

Disconnect the wheel speed sensor connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

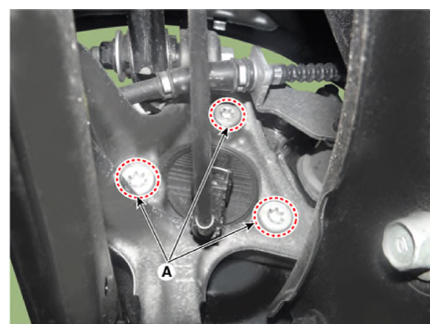

Loosen the bearing bolts (A) and then remove the hub bearing assembly.
Tightening torque:

88.2 - 107.8 N.m (9.0 - 11.0 kgf.m, 65.0 - 79.5 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
