Components & Components Location: Components

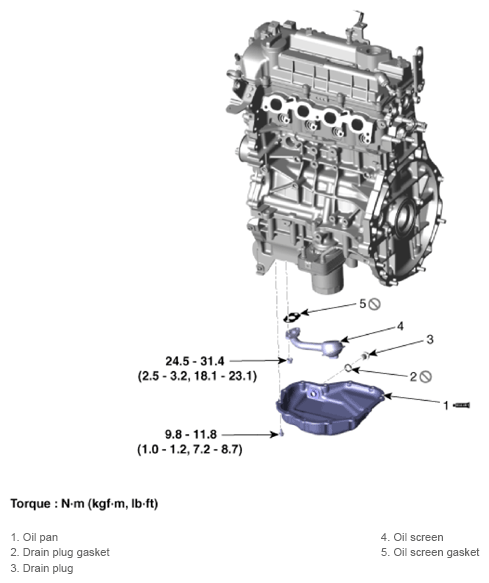

Fig 1: Oil Pan Components Location With Torque Specification
G12695764Courtesy of KIA MOTORS AMERICA, INC.
