Component Location

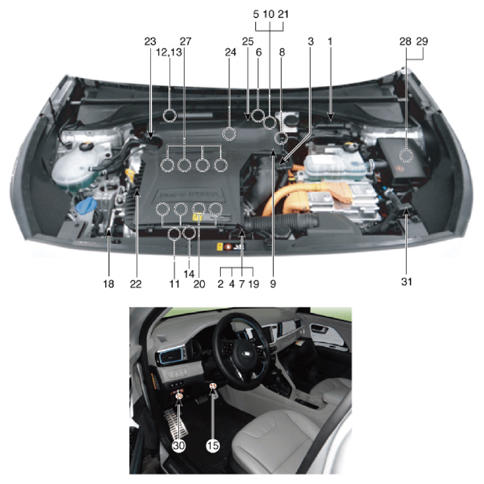

G12696079Courtesy of KIA MOTORS AMERICA, INC.

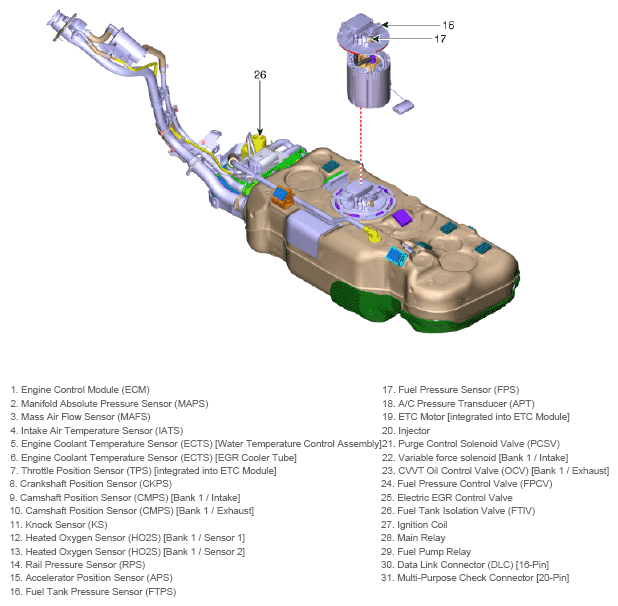

G12696080Courtesy of KIA MOTORS AMERICA, INC.

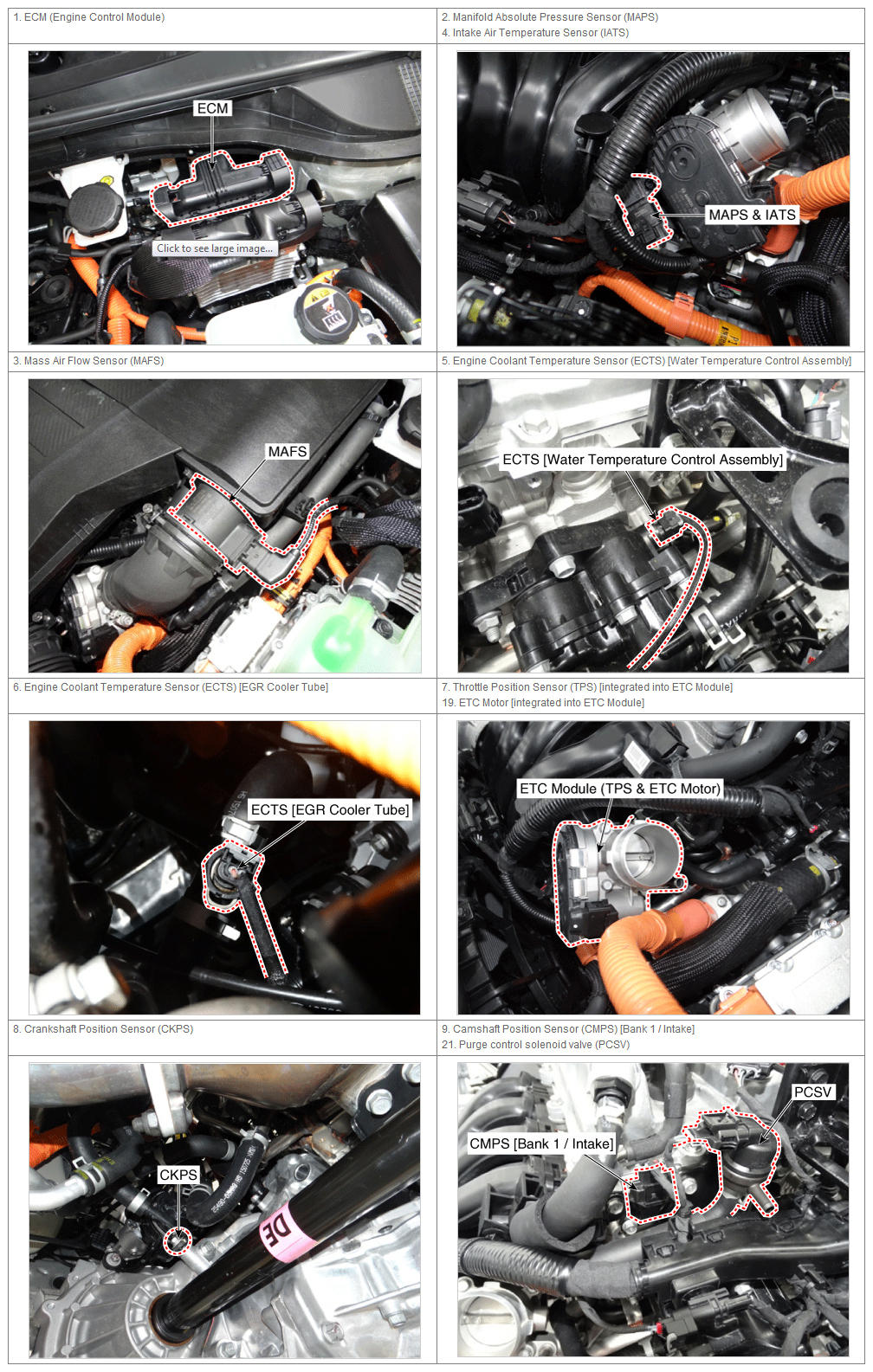

G12696081Courtesy of KIA MOTORS AMERICA, INC.

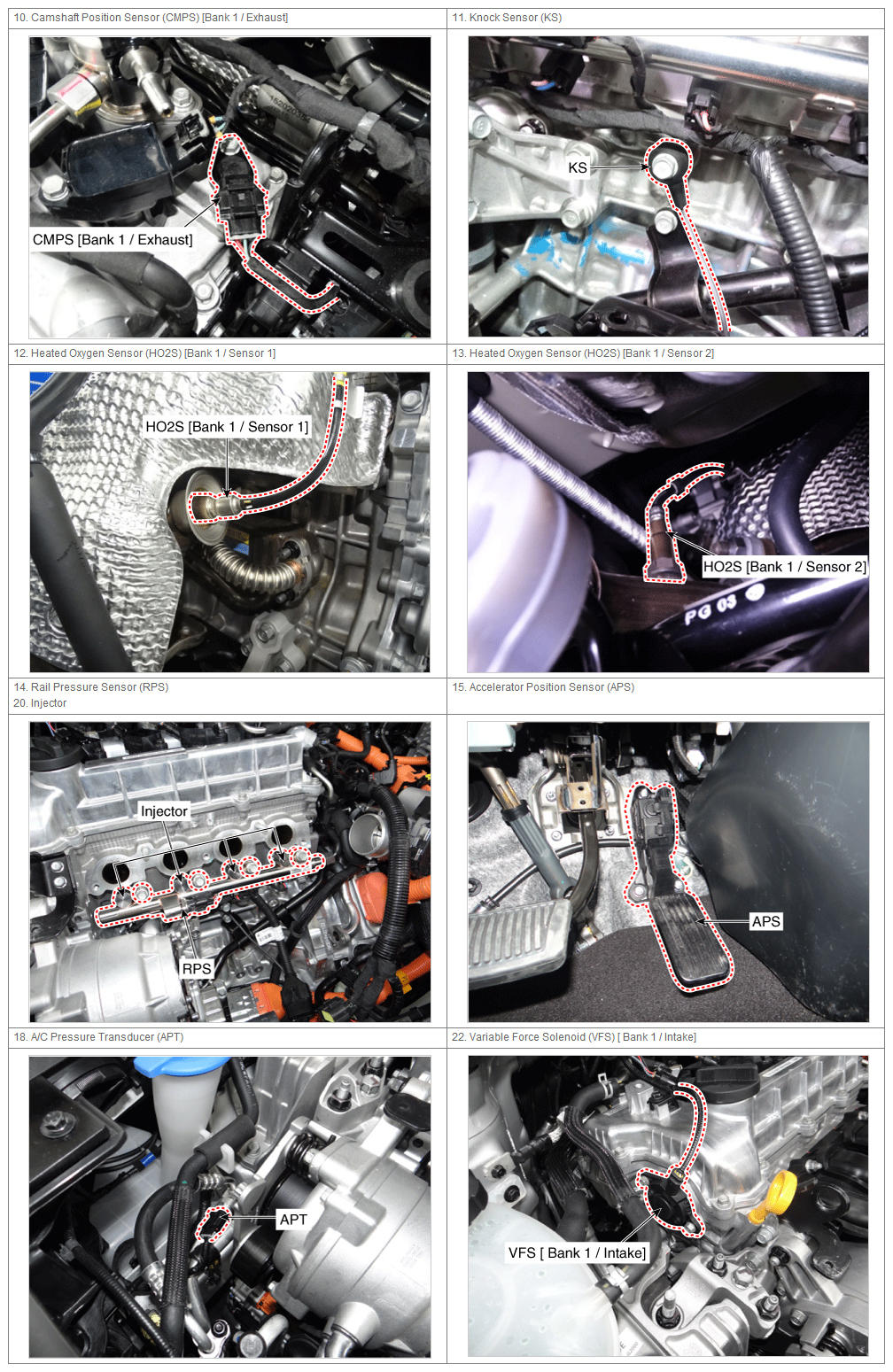

G12696082Courtesy of KIA MOTORS AMERICA, INC.

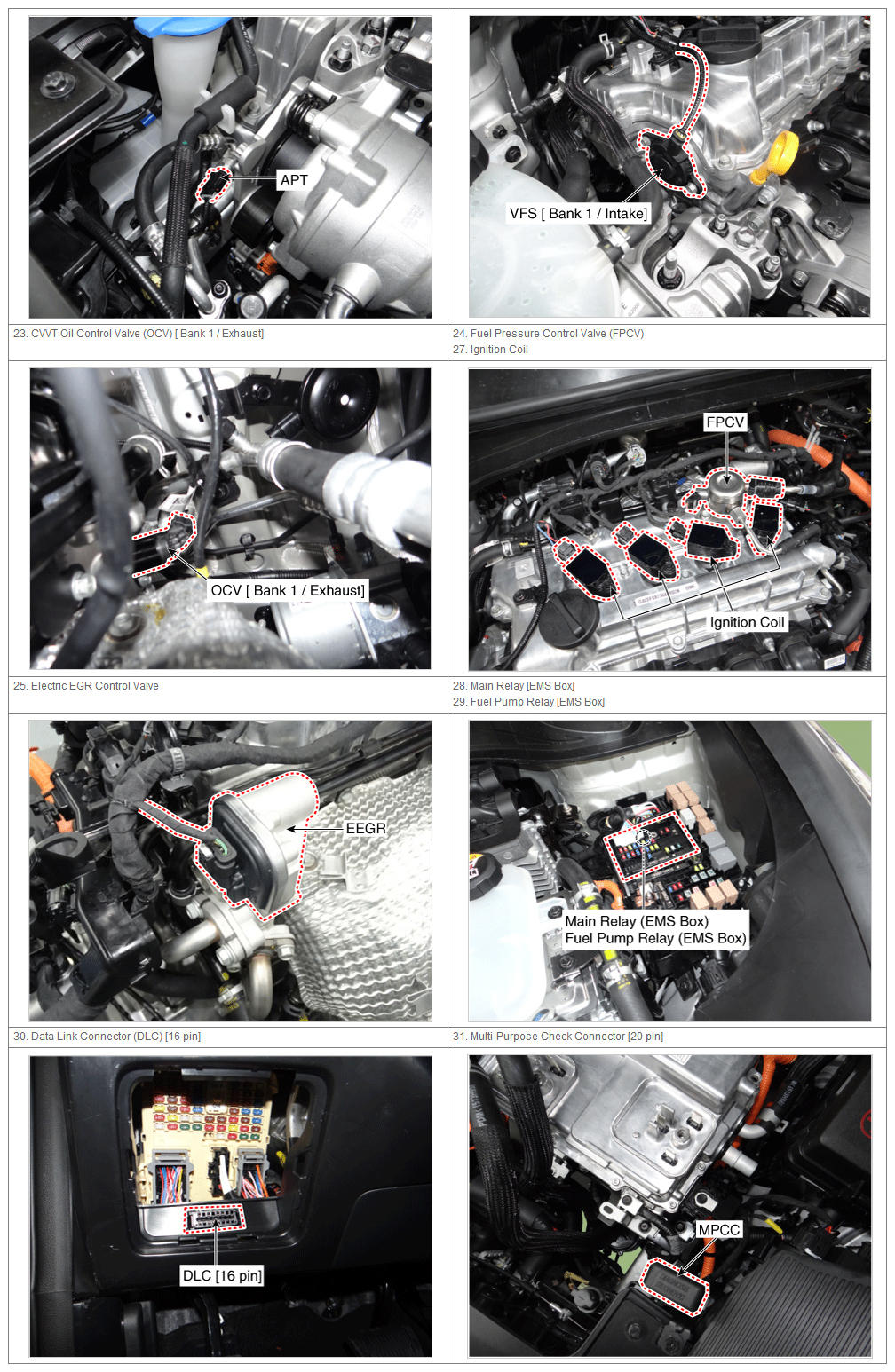

G12696083Courtesy of KIA MOTORS AMERICA, INC.
