Repair Procedures: Removal
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the air cleaner assembly.
(Refer to Engine Mechanical System - " AIR CLEANER ")

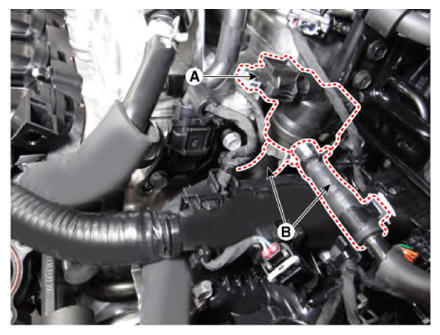

- Disconnect the purge control solenoid valve connector (A).
- Disconnect the vapor hoses (B) from the purge control solenoid valve.
- Remove the purge control solenoid valve.
