Repair Procedures: Removal

Remove the fuel pump.
(Refer to Fuel Delivery System - " FUEL PUMP ")
Disconnect the fuel pump motor connector (A) and fuel sender connector (B).

Courtesy of KIA MOTORS AMERICA, INC.
Lift the fixing hook (A) by using a common driver, and then remove the fuel sender (B).

Courtesy of KIA MOTORS AMERICA, INC.

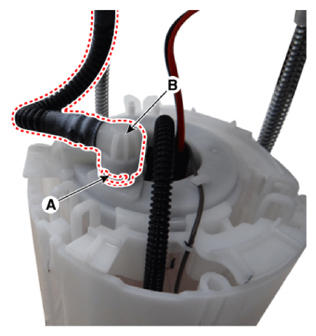

Remove the fixing clip (A), and then disconnect the feed tube (B).

Courtesy of KIA MOTORS AMERICA, INC.

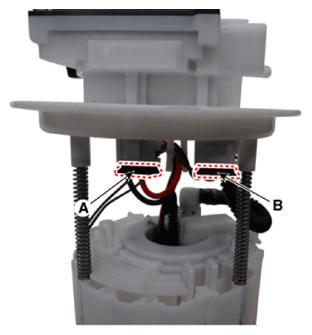

Remove the head assembly after releasing the cushion fixing clip (A).

Courtesy of KIA MOTORS AMERICA, INC.

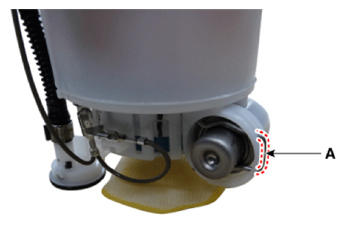

Remove the reservoir-cup (B) after releasing the fixing hook (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the fuel pressure regulator (B) after releasing the fixing hook (A).

Courtesy of KIA MOTORS AMERICA, INC.
