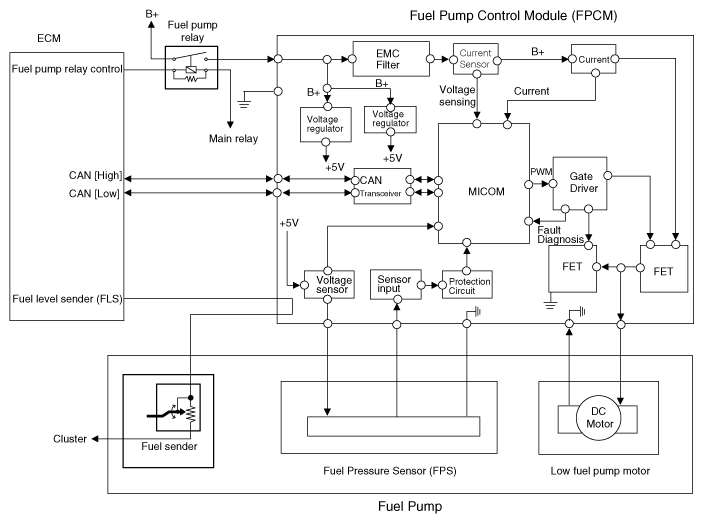

Home › Kia › 2018 › Niro Plug-In Hybrid EX › Repair and Diagnosis › Engine Performance › Fuel Delivery › Fuel Delivery System (PHEV) › Fuel Pressure Sensor (FPS) › Schematic Diagrams › Circuit Diagram › Notes
