Interior 2 Antenna
WARNING: This page is about a different car, the 2018 Hyundai Ioniq. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.
- Remove the console upper cover
(Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

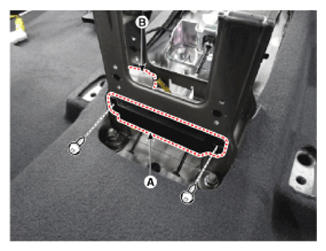

- Remove the interior 2 antenna (A) after loosening the mounting screws (2EA) and disconnecting the connector (B).
