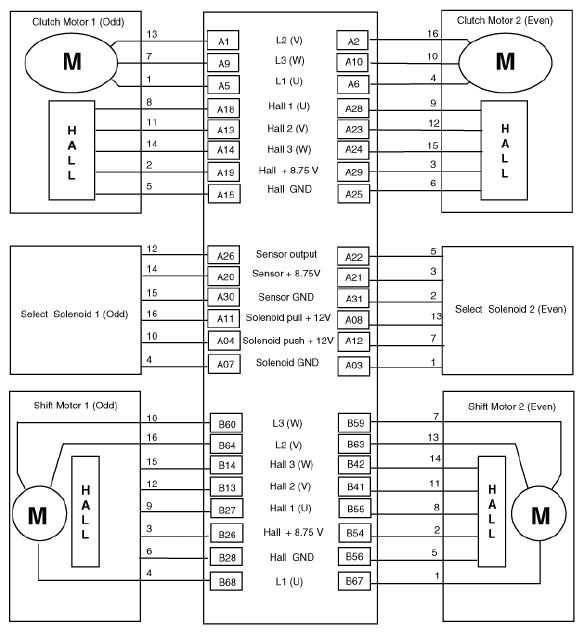

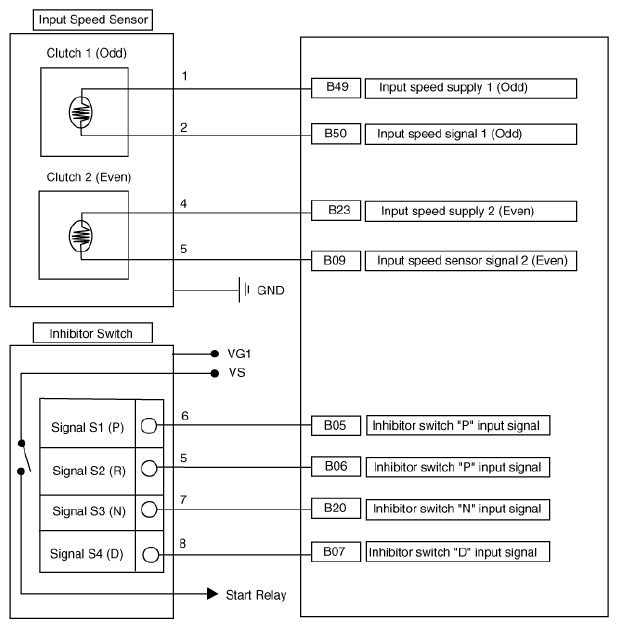

Home › Kia › 2018 › Niro Plug-In Hybrid EX › Repair and Diagnosis › Transmission › Transmission Control Systems › Dual Clutch Transmission Control System (PHEV) › DCT Control Module (TCM) › Schematic Diagrams › Circuit Diagram
