Rear Power Window Motor
- Disconnect the negative (-) battery terminal.
- Remove the rear door trim.
(Refer to Body - " REAR DOOR TRIM ")

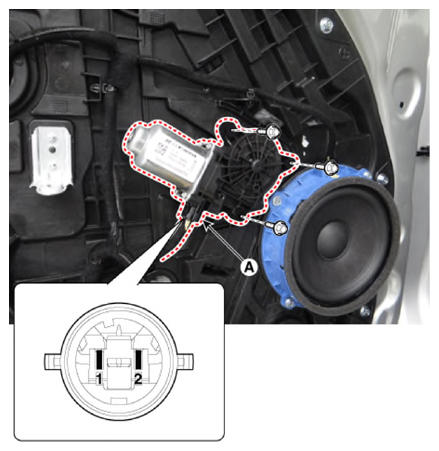

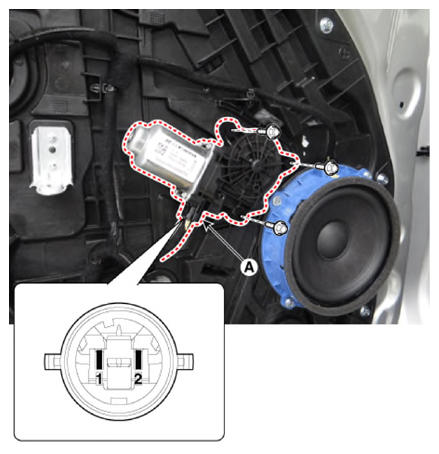

- Disconnect the motor connector (A) from the motor.

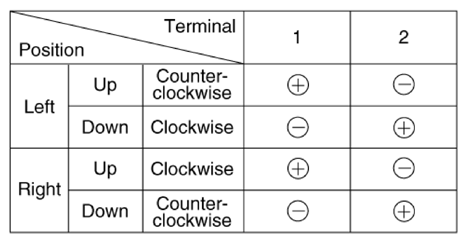

- Connect the motor terminals No. 1 and No. 2 directly to battery voltage (12V) and check that the motor operates smoothly. If the operation is abnormal, replace the motor.
