Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - " CRASH PAD  ")

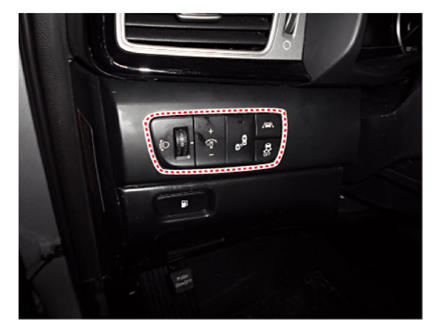

  3. Remove the side crash pad switch assembly.
    G12697294Courtesy of KIA MOTORS AMERICA, INC.
  4. Check the continuity between the switch terminals as the ESP OFF switch is engaged.
    G12697295Courtesy of KIA MOTORS AMERICA, INC.
