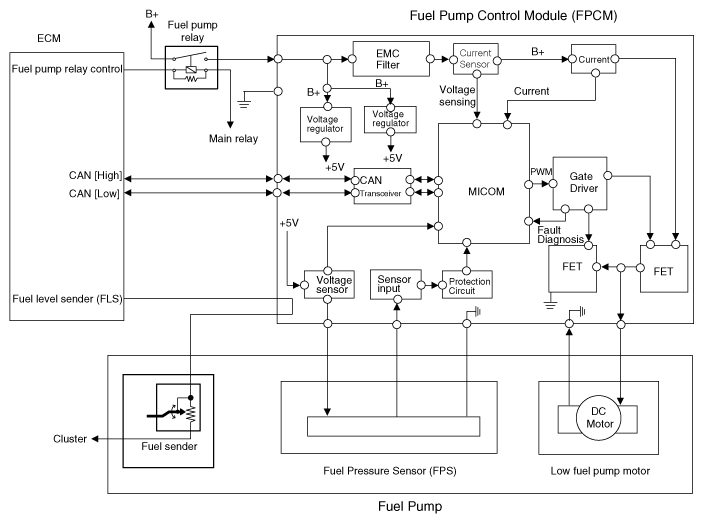

Home › Kia › 2018 › Niro Plug-In Hybrid LX › Repair and Diagnosis › Engine Performance › Fuel Delivery › Fuel Delivery System (PHEV) › Fuel Pump Control Module (FPCM) › Schematic Diagrams › Circuit Diagram
