Repair Procedures: Inspection

1. Disconnect the ignition switch connector (A) and key warning switch connector (B) from under the steering column.

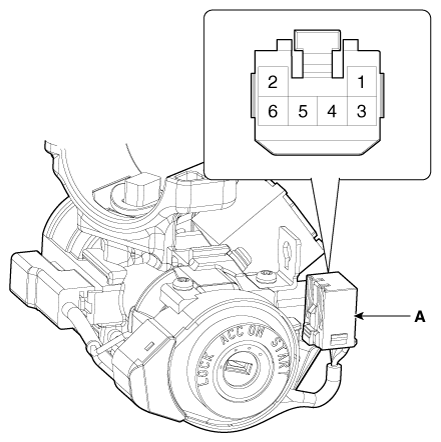

   Fig 1: Locating Ignition Switch With Connector End View

   Courtesy of KIA MOTORS AMERICA, INC.

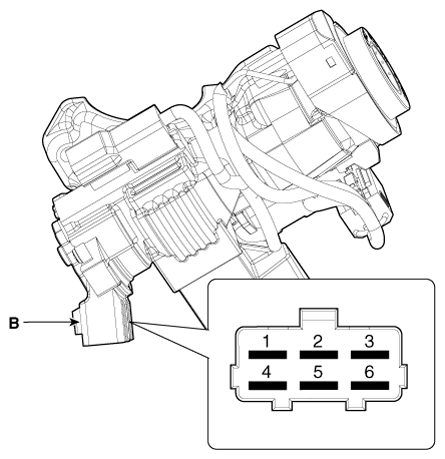

   Fig 2: Locating Key Warning Switch With Connector End View

   Courtesy of KIA MOTORS AMERICA, INC.
2. Check for continuity between the terminals.
3. If continuity is not as specified, replace the switch.

Fig 3: Ignition Switch & Key Warning Switch Terminal Continuity Chart

Courtesy of KIA MOTORS AMERICA, INC.
