Engine Control System - 1.6L (Except HEV)
›
Camshaft Position Sensor (CMPS)
›
Troubleshooting
›
Wave Form
Wave Form

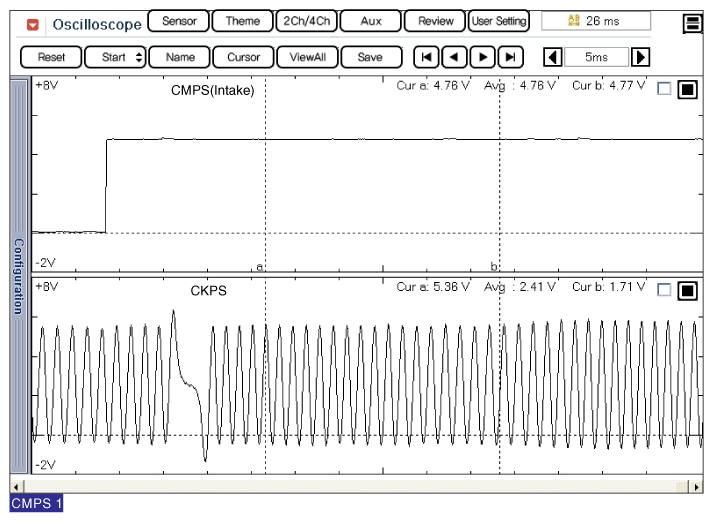

Fig 1: Scantool Display - Typical Crankshaft Position Sensor And Camshaft Position Sensor Waveform At Idle (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

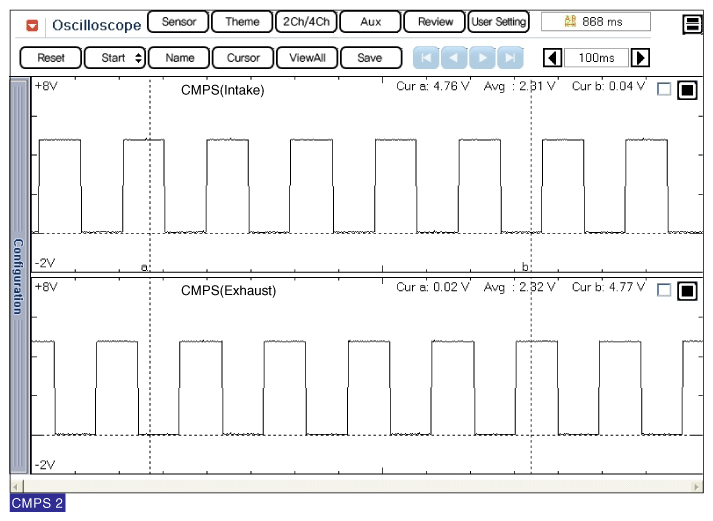

Fig 2: Scantool Display - Typical Crankshaft Position Sensor And Camshaft Position Sensor Waveform At Idle (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
