Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System - 1.6L (Except HEV)
›
Components And Components Location
›
Components Location
Components Location

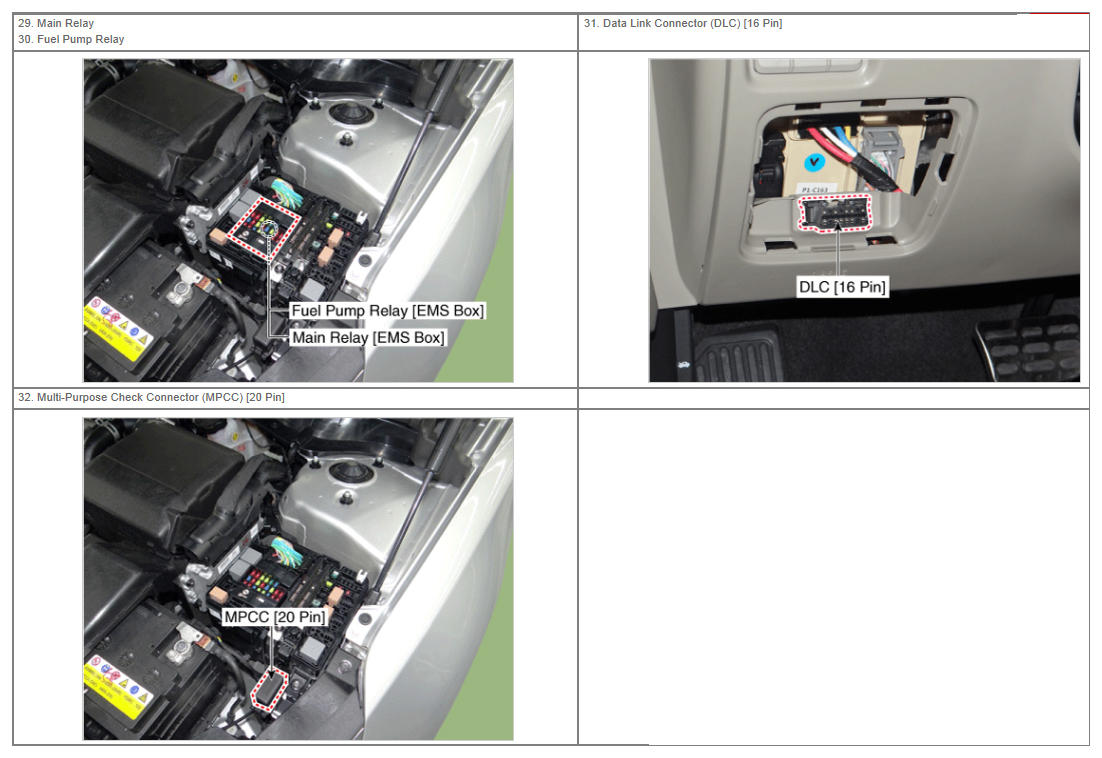

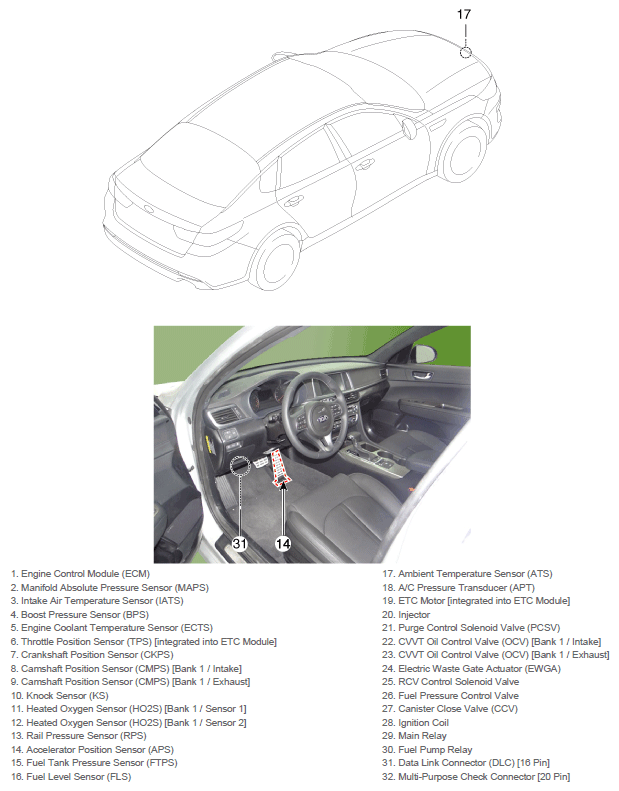

Fig 1: Engine Control System Components (1 Of 6)
Courtesy of KIA MOTORS AMERICA, INC.

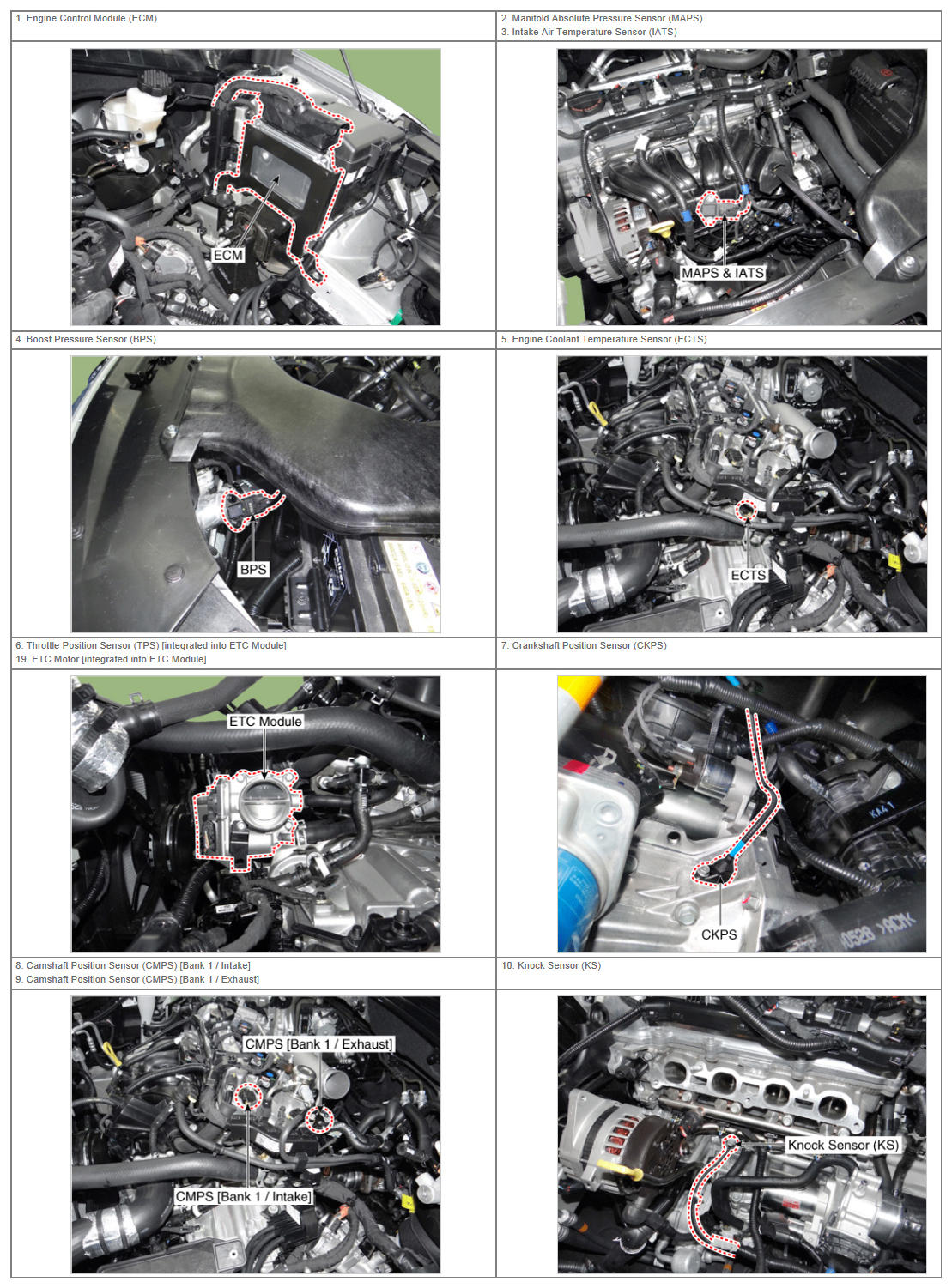

Fig 2: Engine Control System Components (2 Of 6)
Courtesy of KIA MOTORS AMERICA, INC.

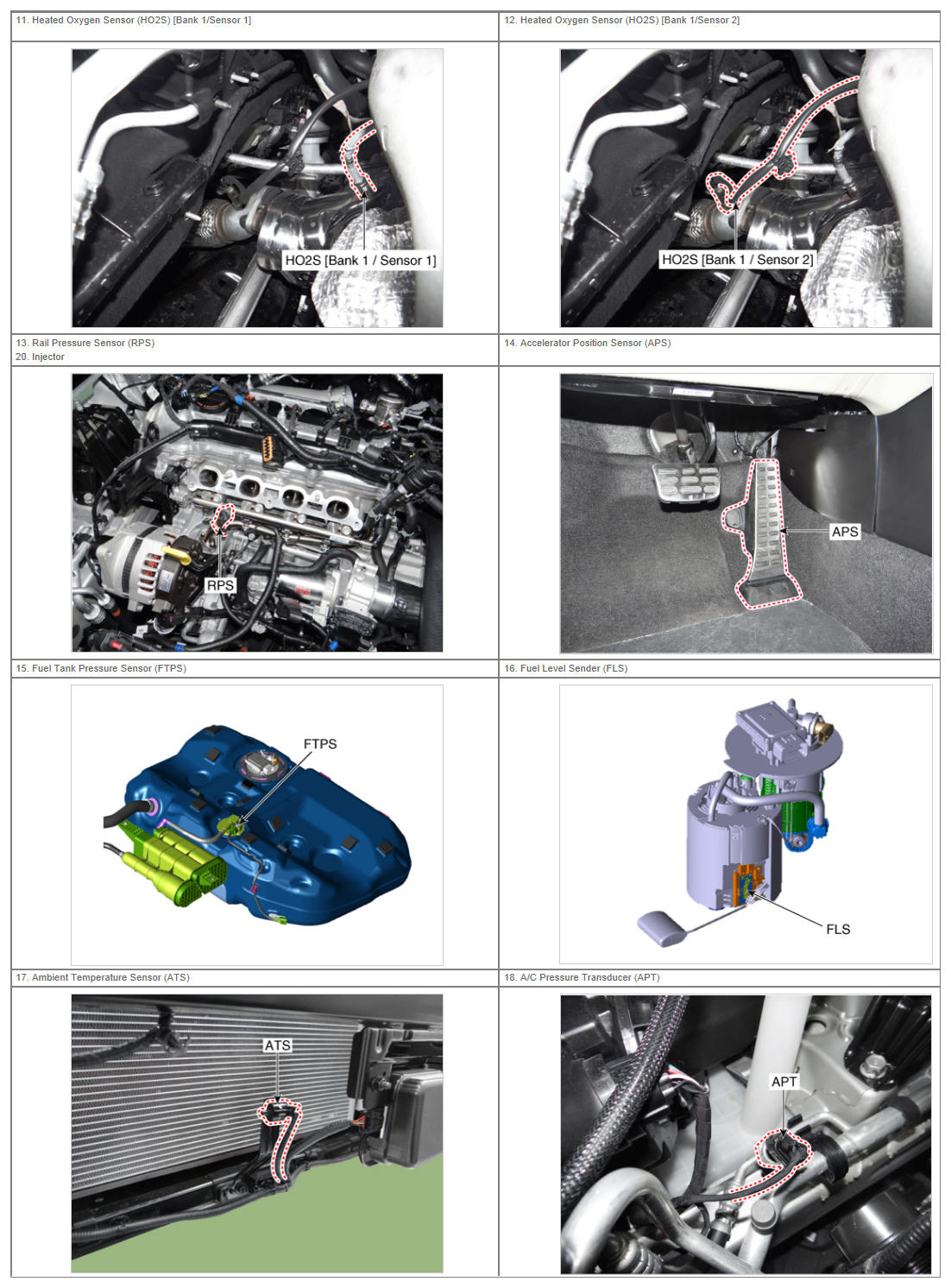

Fig 3: Engine Control System Components (3 Of 6)
Courtesy of KIA MOTORS AMERICA, INC.

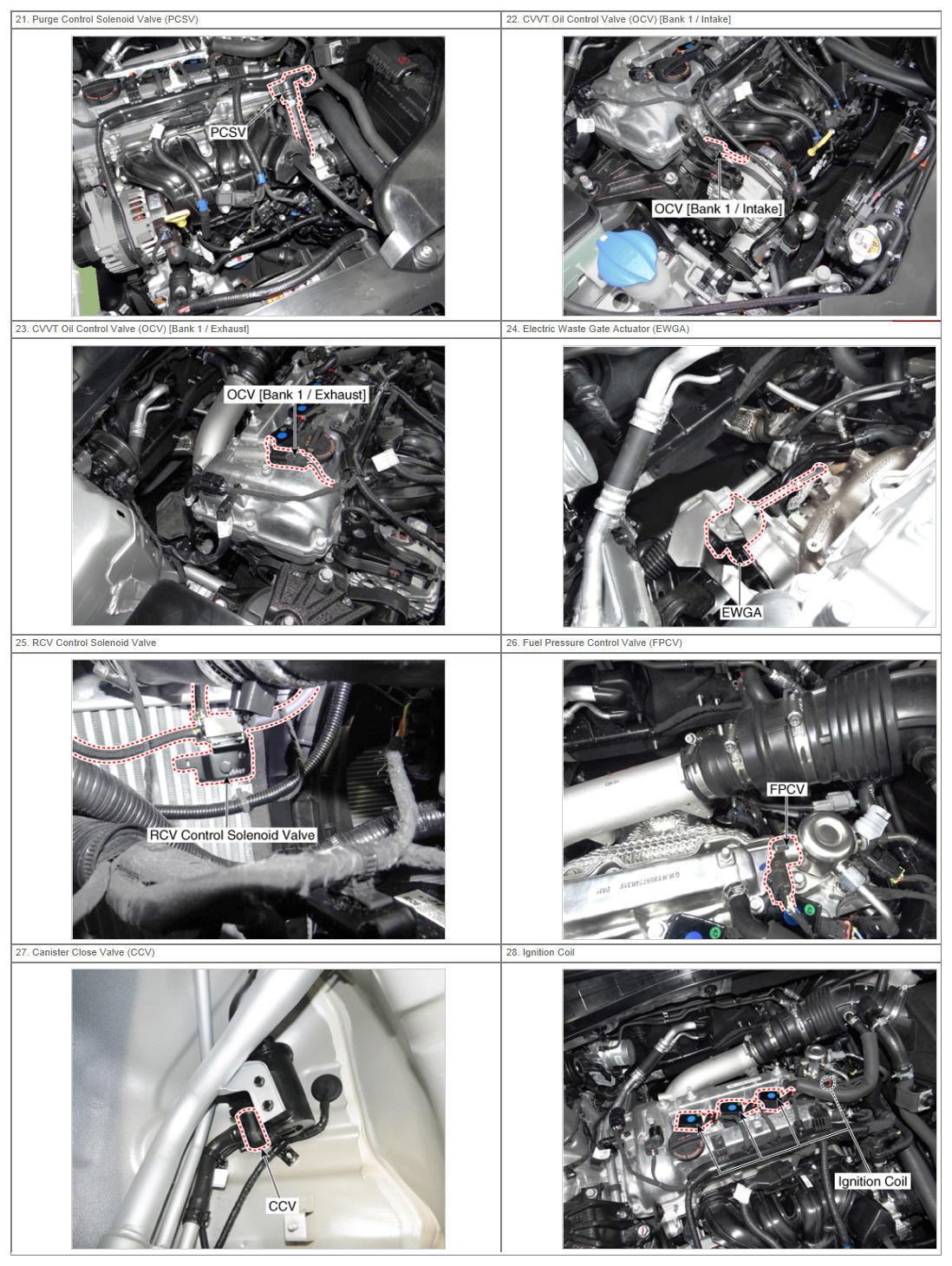

Fig 4: Engine Control System Components (4 Of 6)
Courtesy of KIA MOTORS AMERICA, INC.

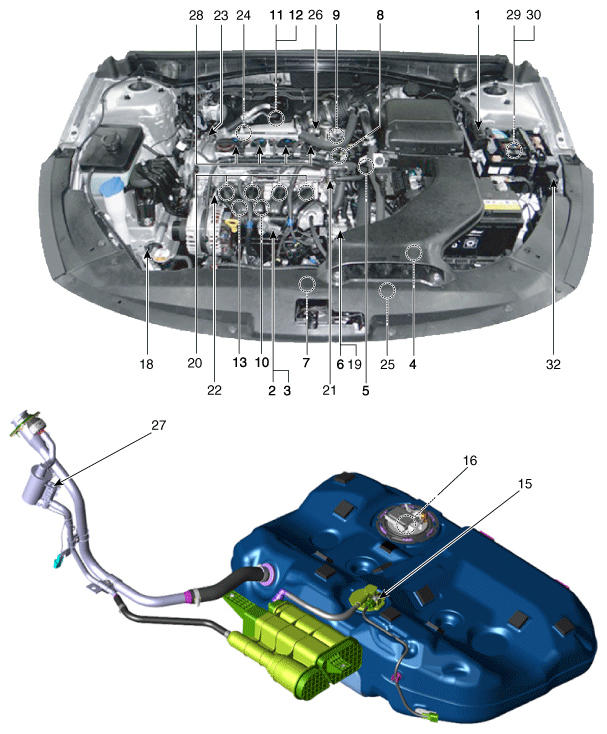

Fig 5: Engine Control System Components (5 Of 6)
Courtesy of KIA MOTORS AMERICA, INC.
Fig 6: Engine Control System Components (6 Of 6)
Courtesy of KIA MOTORS AMERICA, INC.
