Circuit Diagram

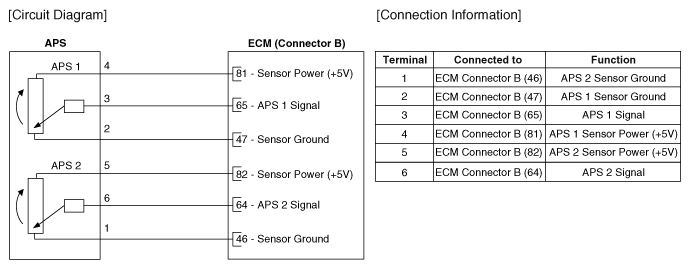

Fig 1: Accelerator Position Sensor Circuit
G12146894Courtesy of KIA MOTORS AMERICA, INC.

Harness Connector

Fig 2: Accelerator Position Sensor Connector Terminals
G12146895Courtesy of KIA MOTORS AMERICA, INC.
