Variant Coding: Notes

Ignition "ON"

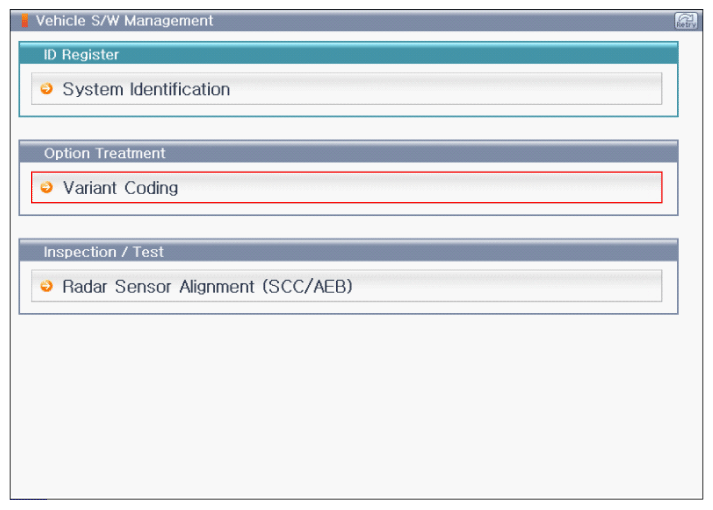

Perform "Vehicle S/W Management" → "SCC (AEB) Variant Coding" with KDS/GDS.

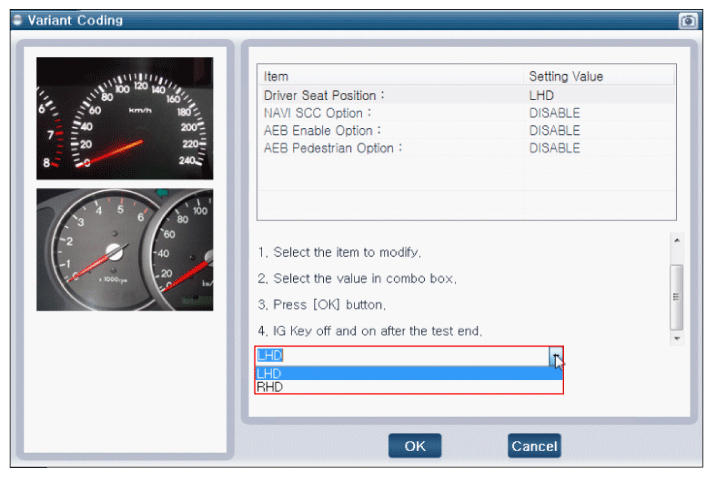

Select the "Variant Coding" and set the proper option.

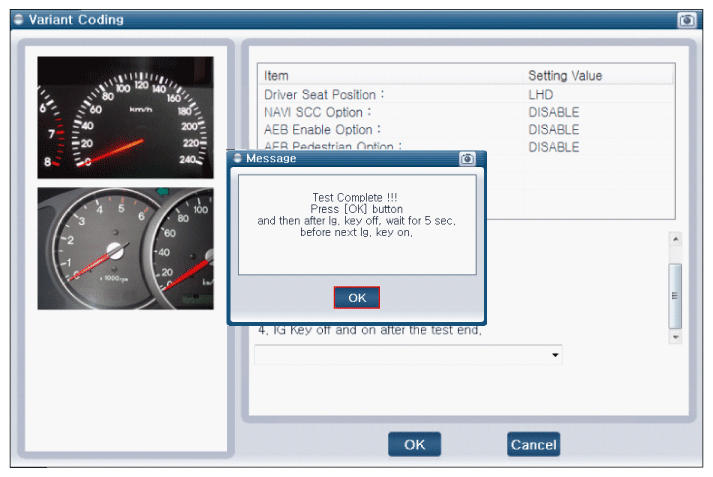

Check for DTCs in the system.
