[Driver Power Window Module (DDM, IMS)]

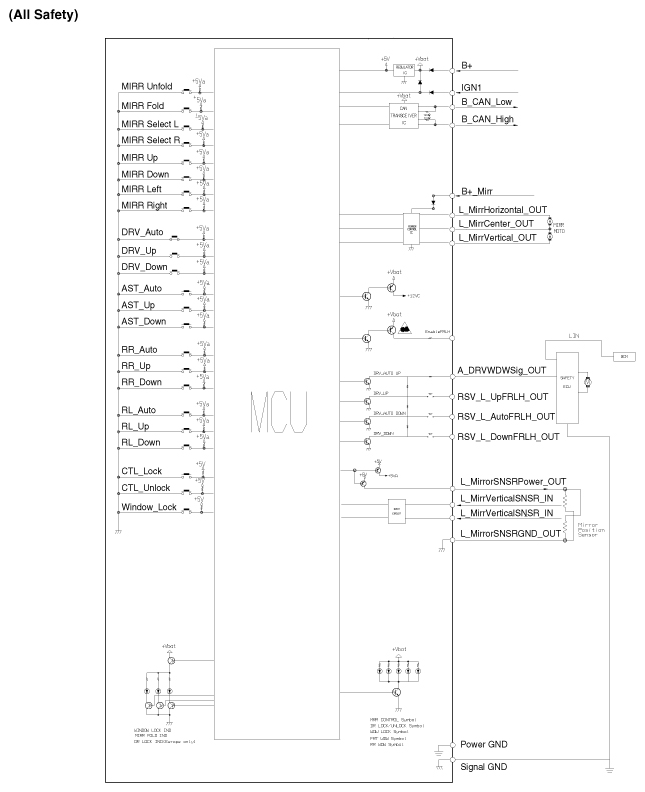

G12351743Courtesy of KIA MOTORS AMERICA, INC.

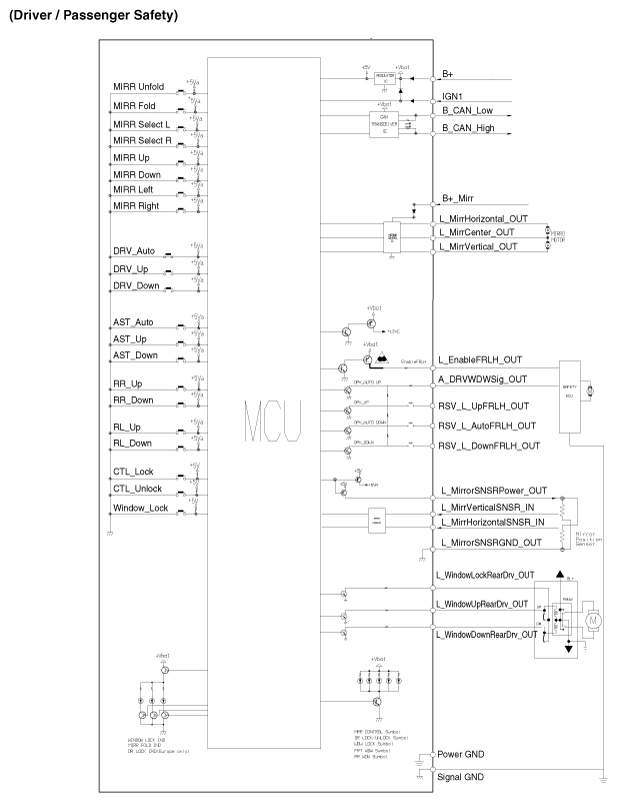

G12351744Courtesy of KIA MOTORS AMERICA, INC.
