Components Location

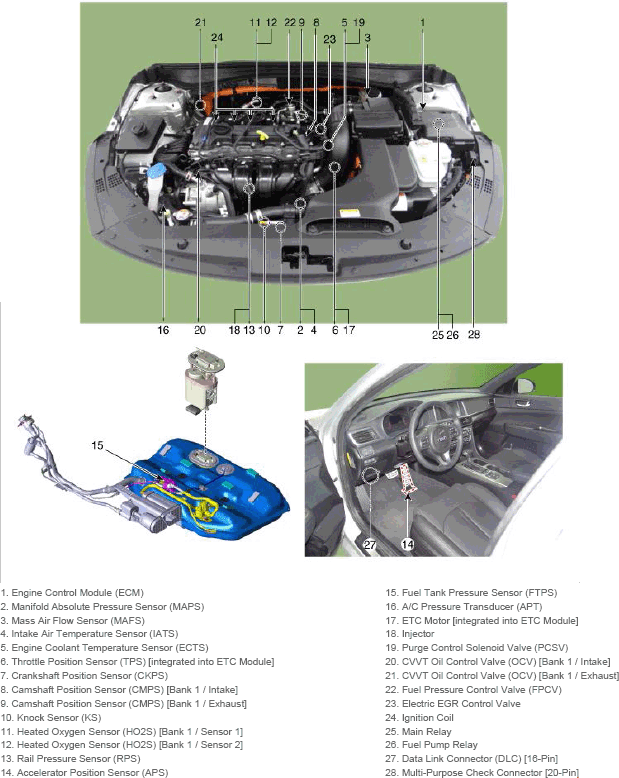

G12347224Courtesy of KIA MOTORS AMERICA, INC.

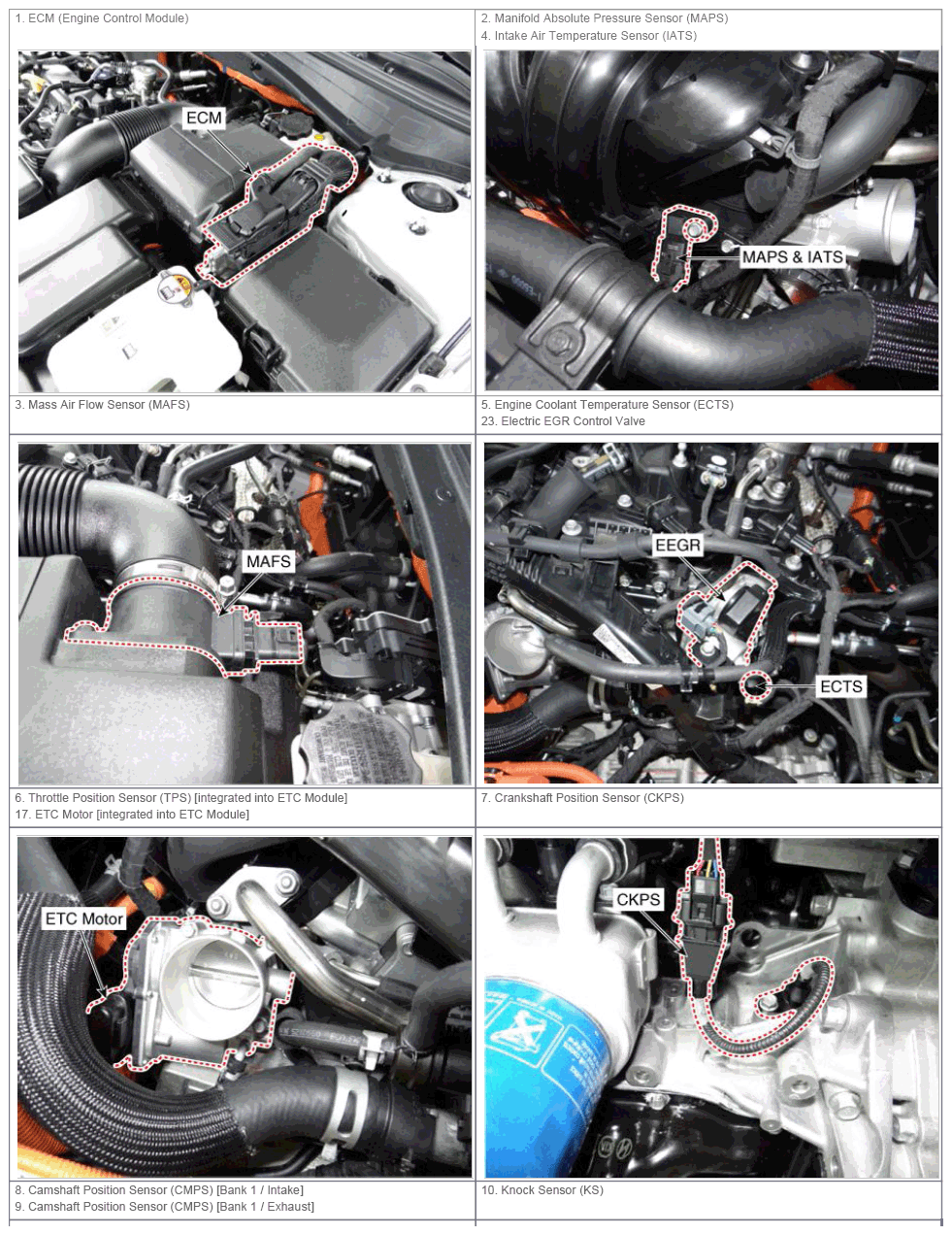

G12347225Courtesy of KIA MOTORS AMERICA, INC.

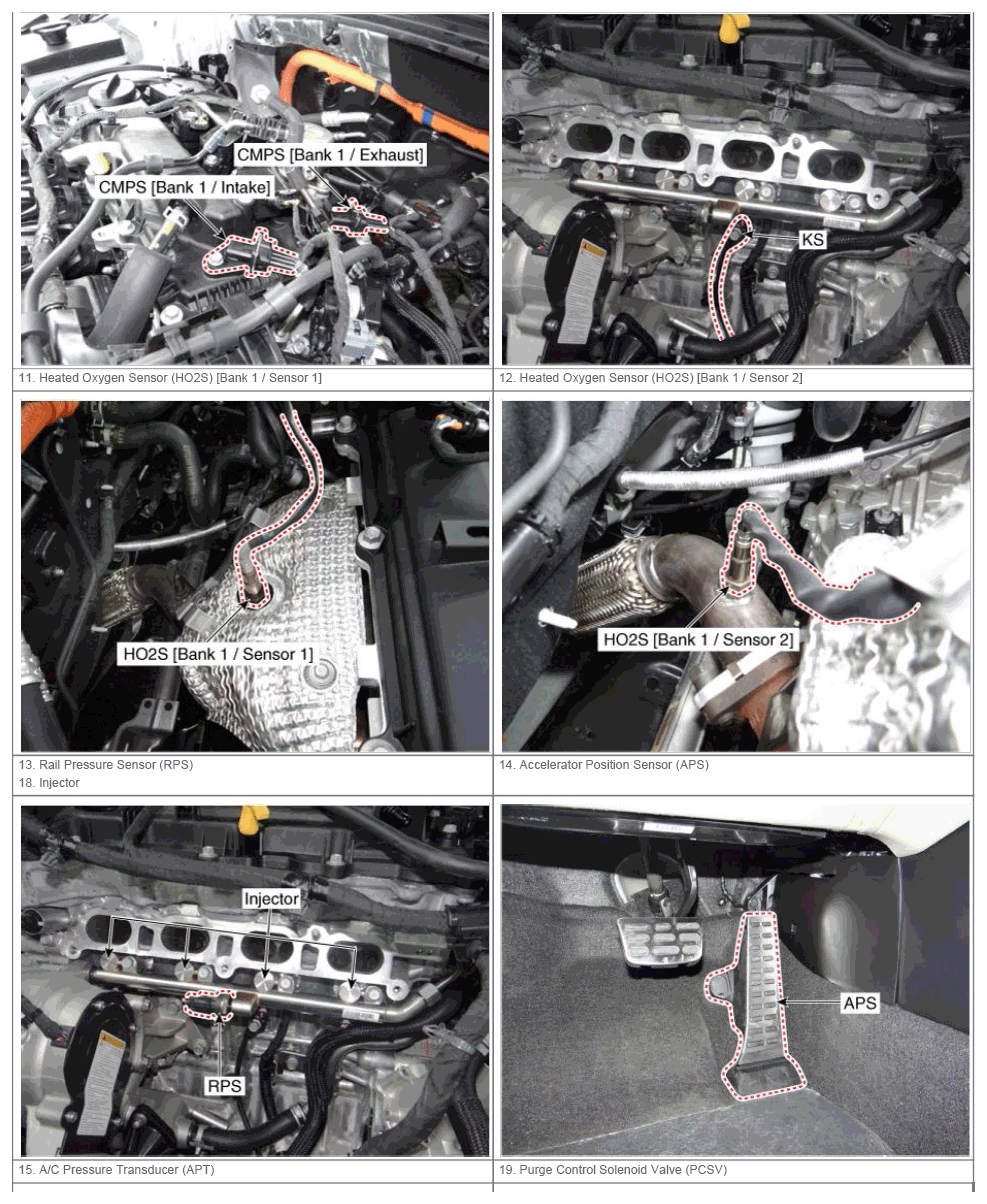

G12347226Courtesy of KIA MOTORS AMERICA, INC.

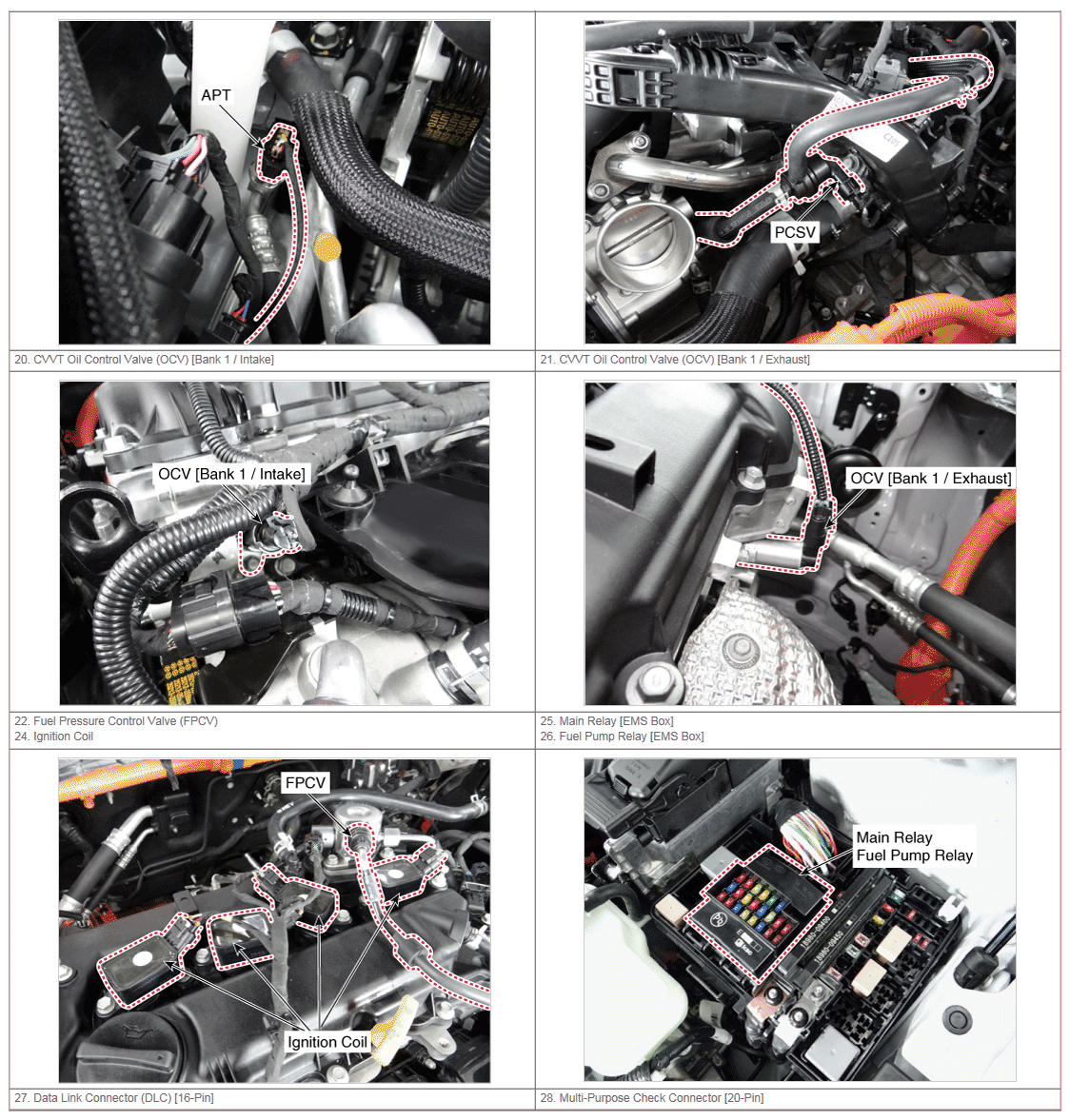

G12340138Courtesy of KIA MOTORS AMERICA, INC.

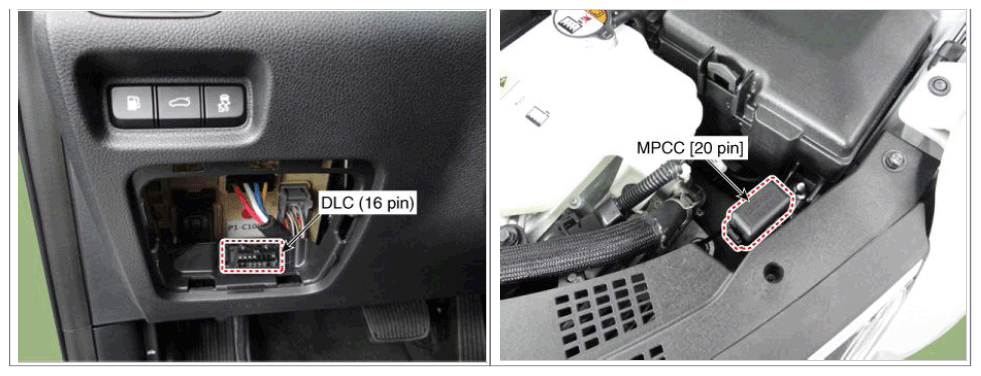

G12347227Courtesy of KIA MOTORS AMERICA, INC.
