Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the crash pad under cover [RH].
(Refer to Body - "CRASH PAD UNDER COVER ")

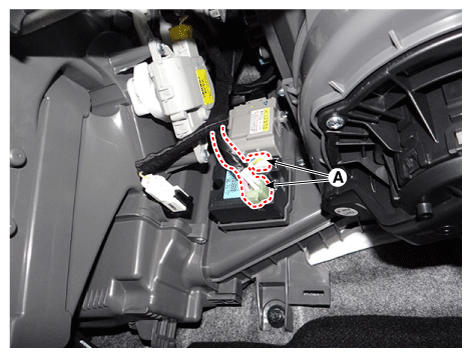

Disconnect the PWM blower module connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

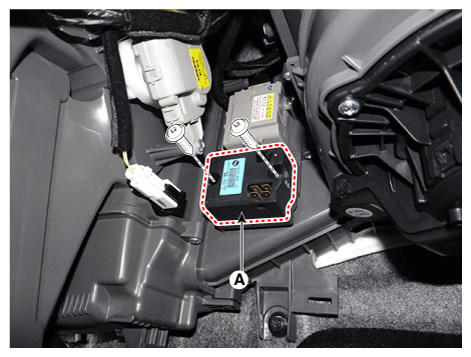

Remove the PWM blower module (A) after loosening the screws.

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
