Repair Procedures: Removal: Disk

WARNING: This page is about a different car, the 2017 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.

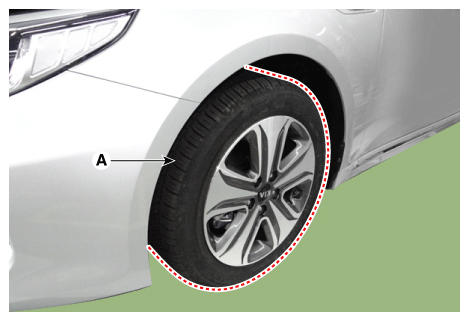

Remove the wheel & tire (A).
Tightening Torque:

88.2. - 107.8 N.m (9.0 - 11.0 kgf.m, 65.0 - 79.5 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Be careful not to damage to the hub bolts when removing the front wheel & tire.

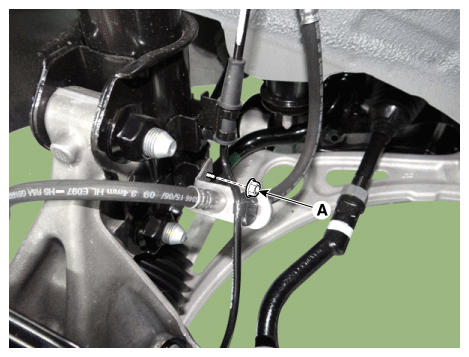

Remove the brake hose bracket bolt (A).

Courtesy of KIA MOTORS AMERICA, INC.

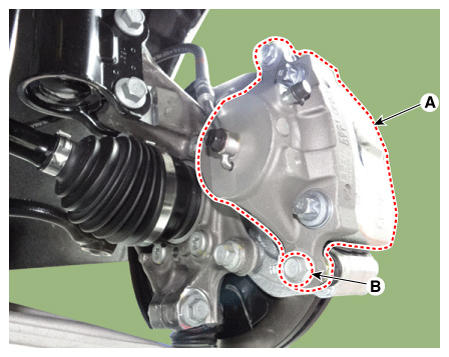

Loosen the guide rod bolt (B) and pivot the caliper (A) up out of the way.

Courtesy of KIA MOTORS AMERICA, INC.

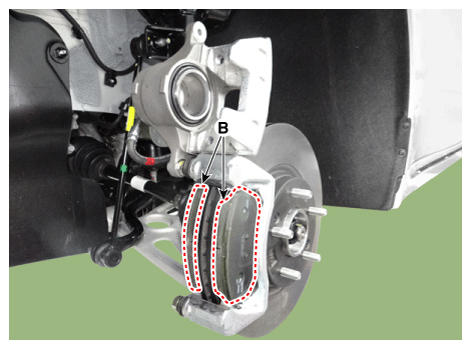

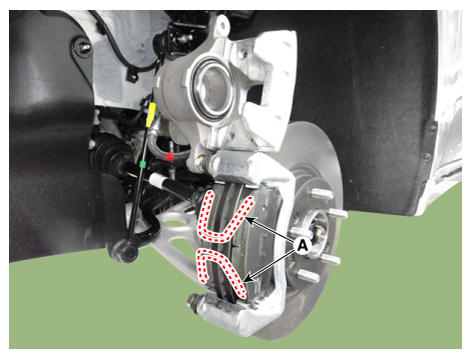

Remove the return spring (A) and brake pad (B).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Pad return springs must be replaced with new ones whenever pads are replaced.
- Technicians should be careful not to deform pad return springs.
- When pad return springs are deformed, it may cause improper braking, more fuel consumption.

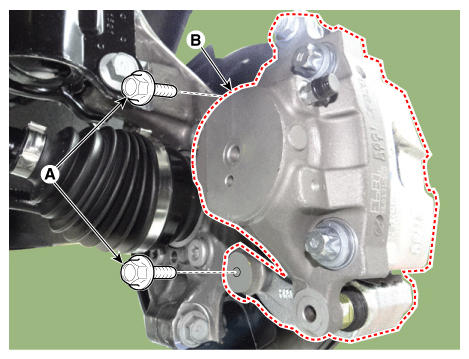

Disconnect the caliper (B) by loosening the caliper mounting bolts (A).

Courtesy of KIA MOTORS AMERICA, INC.

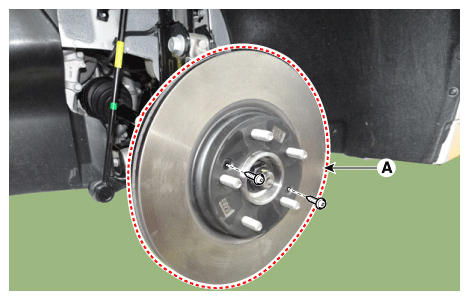

Remove the brake disk (A).

Courtesy of KIA MOTORS AMERICA, INC.
