Repair Procedures: Installation

WARNING: This page is about a different car, the 2017 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.

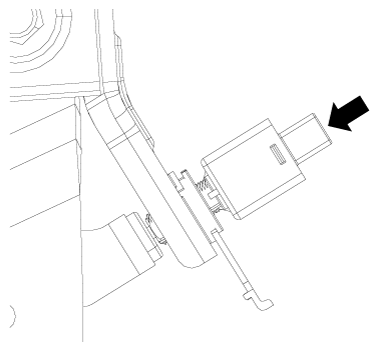

  1. Fix the brake pedal arm and insert fully the stop lamp switch as hiding contact part.
    G12357774Courtesy of KIA MOTORS AMERICA, INC.

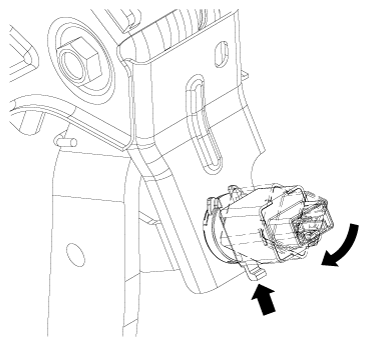

  2. After inserting, turn the stop switch (A) 45° clockwise, and then assemble locking plate (B) by pushing.
    G12357775Courtesy of KIA MOTORS AMERICA, INC.

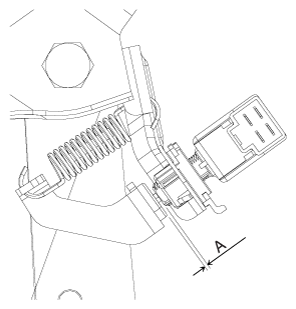

  3. Confirm the gap between stop lamp switch and bracket.

    Stop Lamp Clearance  : 1.0 - 2.0 mm (0.04 - 0.08 in.)

    G12357776Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: If the gap between stop lamp switch and bracket is not 1.0 - 2.0mm (0.04~0.08in), perform the above process again.
  4. Connect the stop lamp switch connector.
  5. Install the knee air bag.

    (Refer to Restraint - "KNEE AIRBAG (KAB) MODULE ")

  6. Install the lower crash pad.

    (Refer to Body - "CRASH PAD ")
