Repair Procedures: Removal

  1. Open the fuel filler door.
  2. Turn ignition switch OFF and disconnect the battery negative (-) terminal.

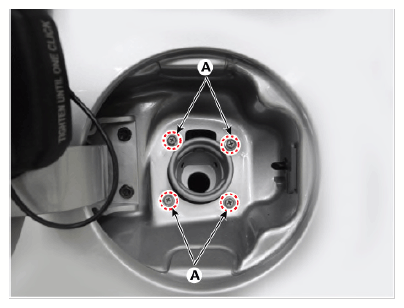

  3. Remove the filler-neck mounting bolts (A).
    G12576735Courtesy of KIA MOTORS AMERICA, INC.
  4. Lift the vehicle.
  5. Remove the rear-LH wheel, tire, and the inner wheel house.

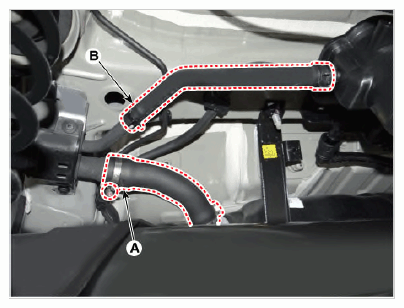

  6. Disconnect the fuel filler hose (A), vapor hose (B).
    G12576736Courtesy of KIA MOTORS AMERICA, INC.

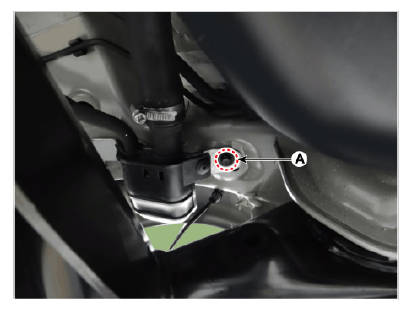

  7. Remove the filler-neck assembly after loosening the mounting bolt (A).
    G12576737Courtesy of KIA MOTORS AMERICA, INC.
