Repair Procedures: Inspection

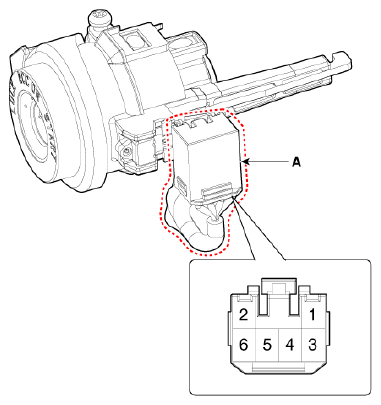

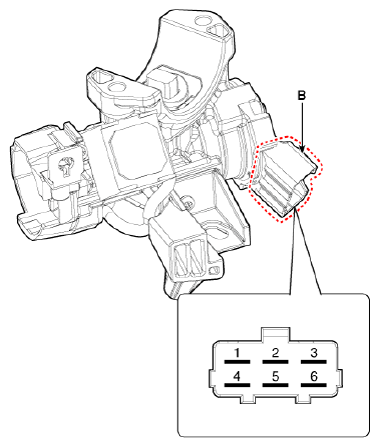

  1. Disconnect the key warning switch connector (A) and ignition switch connector (B) from the steering column.
    G12579823Courtesy of KIA MOTORS AMERICA, INC.
    G12579824Courtesy of KIA MOTORS AMERICA, INC.
  2. Check for continuity between the terminals.
  3. If continuity is not specified, replace the switch.
G12579825Courtesy of KIA MOTORS AMERICA, INC.
