Kia
›
2018
›
Rio LX, 4D Hatchback, Automatic Trans
›
Repair and Diagnosis
›
Engine Mechanical
›
Mechanical
›
Cylinder Block
›
Piston And Connecting Rod
›
Components And Components Location
Components And Components Location
Components

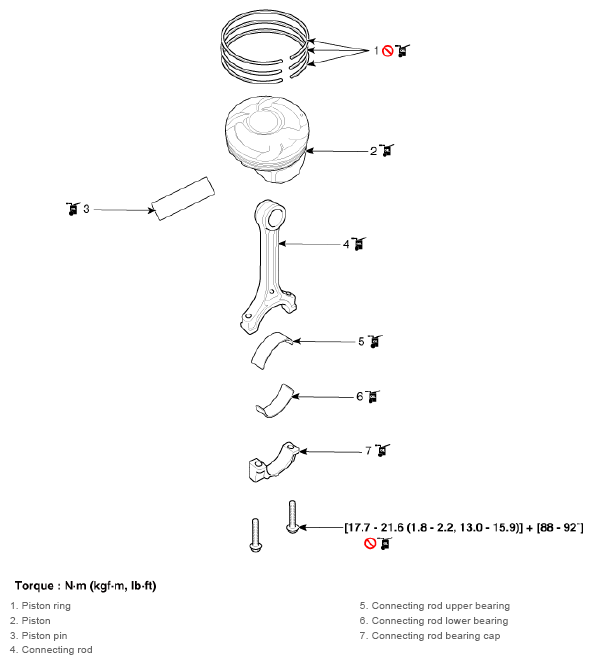

Fig 1: Piston And Connecting Rod Components With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
