Repair Procedures: Installation

Install in the reverse order of removal.

NOTE:

Install the control shaft complete after setting the neutral state.

Courtesy of KIA MOTORS AMERICA, INC.

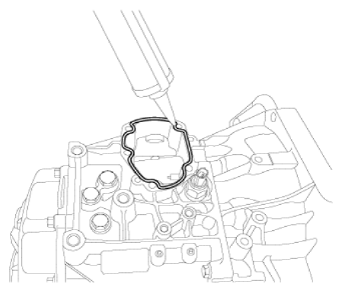

Apply the sealant to the contact surface of transaxle and control shaft.

Specified sealant : Anaerobic adhesive for flange

Courtesy of KIA MOTORS AMERICA, INC.
