Smart Key Unit

Disconnect the negative (-) battery terminal.
Remove the glove box.
(Refer to Body - " GLOVE BOX ")

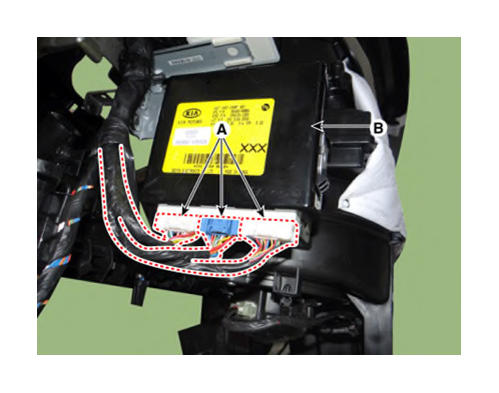

Remove the smart key unit (B) after disconnecting the connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the smart key unit (A) after loosening the mounting nuts.

Courtesy of KIA MOTORS AMERICA, INC.
