Repair Procedures: Replacement

1. Remove the front seat assembly.

   (Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

2. Remove the front seat shield outer cover.

   (Refer to Front Seat - "FRONT SEAT SHIELD OUTER COVER ")

3. Remove the front seat shield inner cover.

   (Refer to Front Seat - "FRONT SEAT SHIELD INNER COVER ")

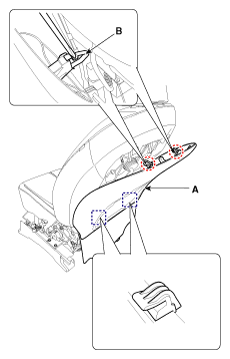

4. Push the lock pin (B) and then pull out the front seat headrest (A).
   Fig 1: Pull Out Front Seat Headrest By Pushing Lock Pin

   Courtesy of KIA MOTORS AMERICA, INC.
5. Push the lock pins (B) from the front seat back board (A), then remove the back board.
   NOTE:

   • Using a flat head screwdriver, push the center of the clip.
   • Be careful not to damage the lock pins.

   Fig 2: Push Lock Pins From Front Seat Back Board

   Courtesy of KIA MOTORS AMERICA, INC.
6. Remove the front seat lower protector (A).
   Fig 3: Locating Front Seat Lower Protector

   Courtesy of KIA MOTORS AMERICA, INC.
7. Push the lock pin, then disconnect the front seat back duct lower (A).
   Fig 4: Locating Front Seat Back Duct Lower

   Courtesy of KIA MOTORS AMERICA, INC.
8. Remove the front seat back duct (A) after loosening the mounting screws.
   Fig 5: Locating Front Seat Back Duct With Mounting Screws

   Courtesy of KIA MOTORS AMERICA, INC.
9. Disconnect the front seat lower connectors (A).
   Fig 6: Locating Front Seat Lower Connectors (1 Of 2)

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 7: Locating Front Seat Lower Connectors (2 Of 2)

   Courtesy of KIA MOTORS AMERICA, INC.
10. Disconnect the fixing hook (A) from the front seat back lower.
    Fig 8: Disconnect Fixing Hook From Front Seat Back Lower

    Courtesy of KIA MOTORS AMERICA, INC.
11. Disconnect the protector (A) from the front seat back frame.
    Fig 9: Disconnect Protector From Front Seat Back Frame

    Courtesy of KIA MOTORS AMERICA, INC.
12. Turn the front seat back cover inside out. Then pull out the headrest guides (A) while pinching both sides of the lower part of the guides.
    Fig 10: Pull Out Headrest Guides

    Courtesy of KIA MOTORS AMERICA, INC.
13. Remove the front seat back cover (A) from the front seat back frame.
    Fig 11: Remove Front Seat Back Cover From Front Seat Back Frame

    Courtesy of KIA MOTORS AMERICA, INC.
14. After removing the Velcro tape (A) and hog-ring clips (C) on the front of seat back, remove the front seat back cover (B).
    Fig 12: Remove Velcro Tape & Hog-Ring Clips On Front Of Seat Back

    Courtesy of KIA MOTORS AMERICA, INC.
15. Install in the reverse order of removal.

Information

• Make sure that the connectors are plugged in properly.

• Replace any damaged clips.

• To prevent wrinkles, make sure that the material is stretched evenly over the cover (B) before securing the hog-ring clips (A).

• Replace the hog-ring clips with new ones using special tool [09880-4F000].

Fig 13: Replace Hog-Ring Clips

Courtesy of KIA MOTORS AMERICA, INC.
