Components And Components Location: Components

WARNING: This page is about a different car, the 2017 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.

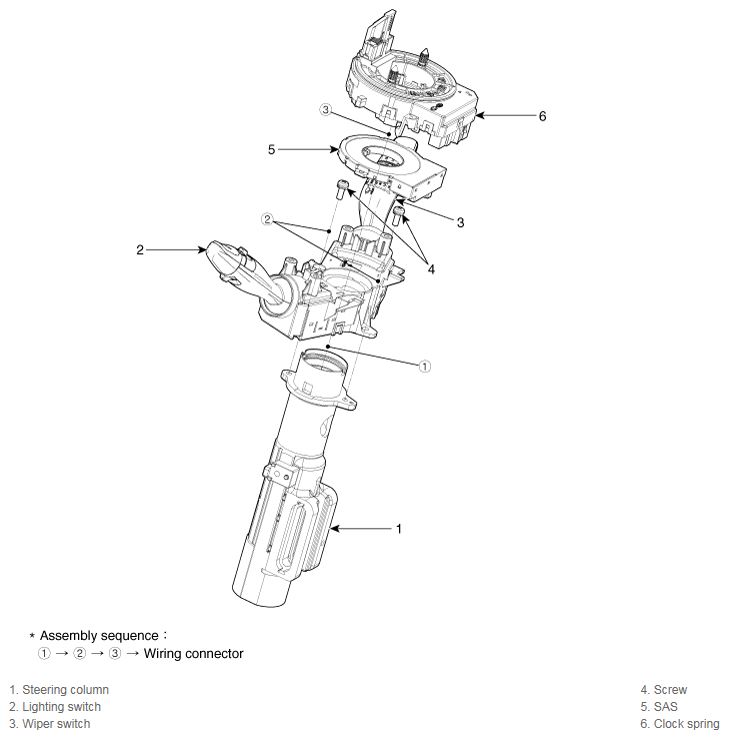

Fig 1: Multifunction Switch Components Location

Courtesy of KIA MOTORS AMERICA, INC.

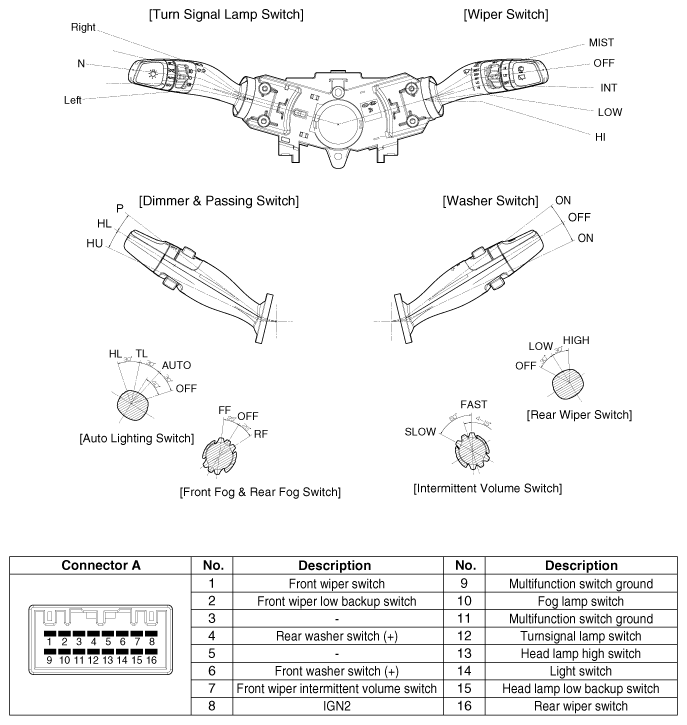

Fig 2: Multifunction Switch Components Location (Operations/Functions)

Courtesy of KIA MOTORS AMERICA, INC.
