Repair Procedures: Installation

Install in the reverse order of removal.
NOTE:
- The existing solenoid valve O-ring (A) must be replaced with new one. (Do not reuse it.)

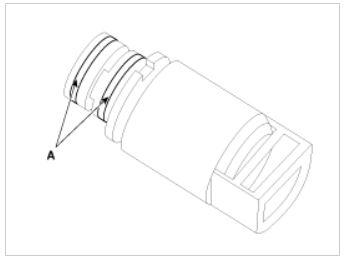

  Fig 1: Locating Existing Solenoid Valve O-ring
  Courtesy of KIA MOTORS AMERICA, INC.
- The existing valve body cover gasket (A) must be replaced with new one. (Do not reuse it.)

  Fig 2: Locating Existing Valve Body Cover Gasket
  Courtesy of KIA MOTORS AMERICA, INC.
- Refill the automatic transaxle with fluid.
  (Refer to Hydraulic System - "FLUID ")
- Confirm that there is no fluid leakage on connections after repairing.
