Components And Components Location: Components

WARNING: This page is about a different car, the 2017 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.

[LH]

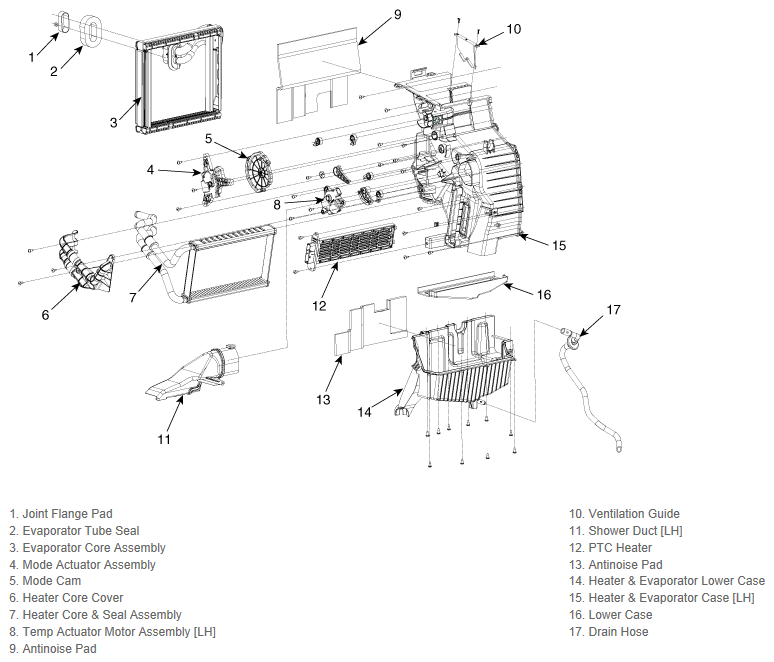

Fig 1: Heater Unit Components Location - LH

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

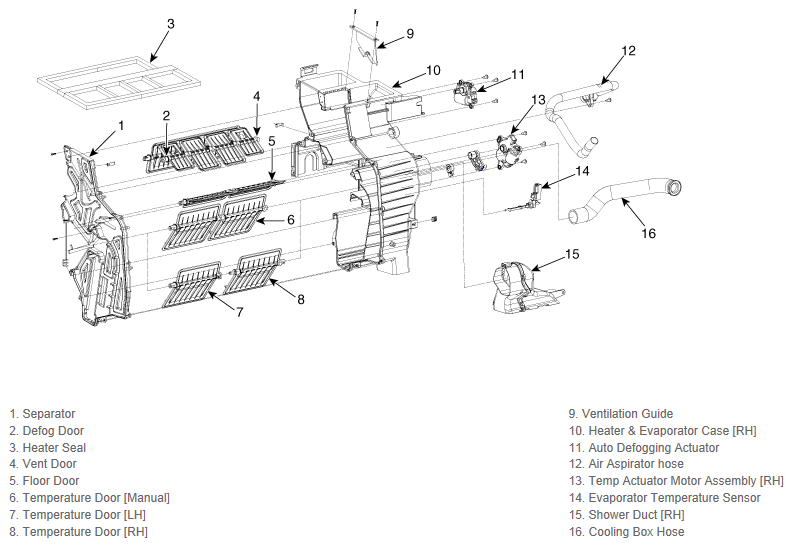

Fig 2: Heater Unit Components Location - RH

Courtesy of KIA MOTORS AMERICA, INC.
