Repair Procedures: Installation
WARNING: This page is about a different car, the 2018 Kia Cadenza. However, it is still accessible from the selected car via links, so may be relevant.
- Install in the reverse order of removal.
- Using the SST (09581-2T100), install the brake caliper assembly.
Courtesy of KIA MOTORS AMERICA, INC.

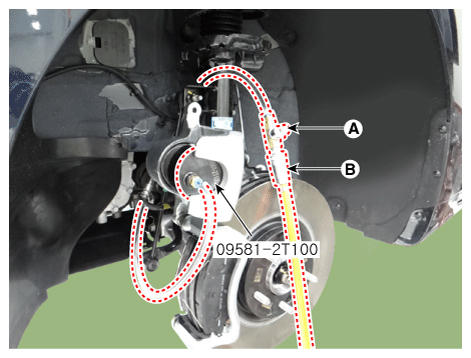

NOTE:- Connect an air hose (B) to the SST after confirming that the valve of the SST is completely closed.
- Insert the SST into the caliper and press the caliper piston by slowly opening the SST valve in the counter clockwise direction.
- Close the valve (A) of the SST and disconnect the air hose (B); then, open the valve again to get the rest of air out and remove the SST from the caliper.
- After installation, bleed the brake system.
(Refer to Brake system - "BRAKE SYSTEM BLEEDING ")
