Components And Components Location: Components

WARNING: This page is about a different car, the 2018 Kia Cadenza. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Rear Disc Brake Components Location (W/O EPB)

Courtesy of KIA MOTORS AMERICA, INC.

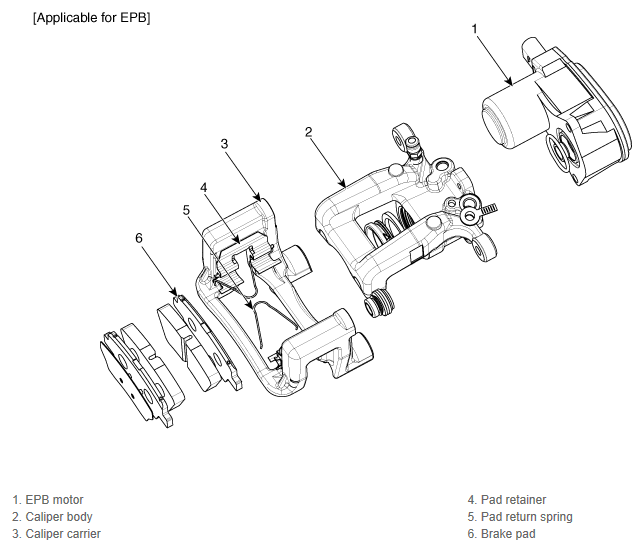

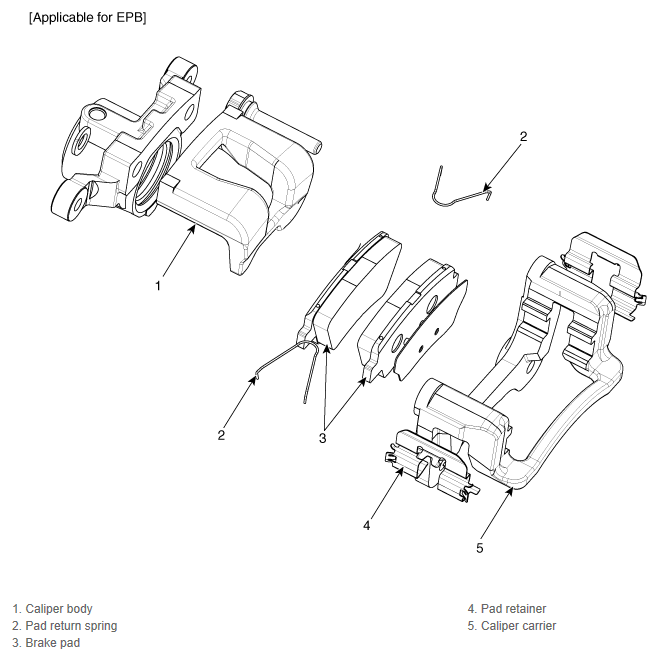

Fig 2: Rear Disc Brake Components Location (W/EPB)

Courtesy of KIA MOTORS AMERICA, INC.
