Check HO2S (B2/S2) Performance

1. Warm up the engine to normal operating temperature.
2. Connect VMI to GDS and select "Oscilloscope".
3. Connect Channel A positive probe to Pin No. 1 (high) and Channel A negative probe to Pin No. 2 (low).

   Specification  : Refer to Fig 1

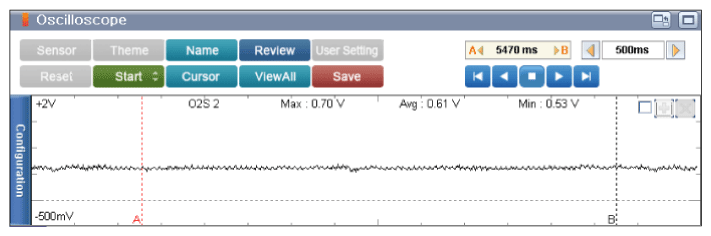

Fig 1: Screen Display - Signal Waveform Of HO2S 2 At Normal Condition

Courtesy of KIA MOTORS AMERICA, INC.
