Etc Test

Connect GDS to Data Link Cable (DLC).
IG "ON" & ENG "OFF".
Select the "Vehicle S/W Management" about related DTC with GDS.

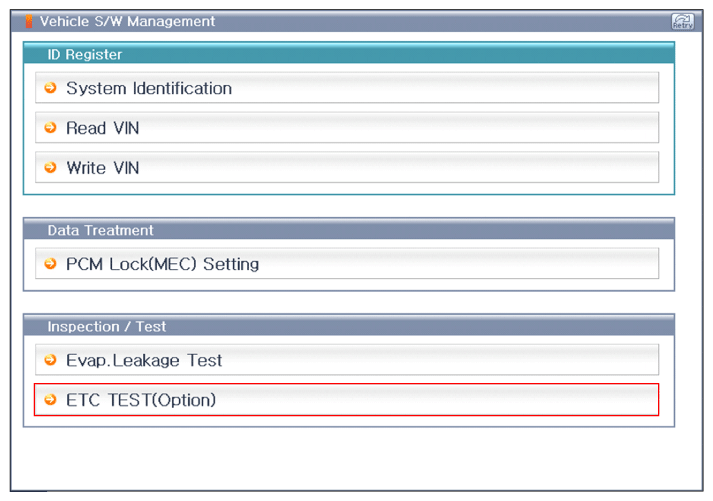

Fig 1: Scantool Display - Vehicle S/W Management (ETC Test)
Courtesy of KIA MOTORS AMERICA, INC.

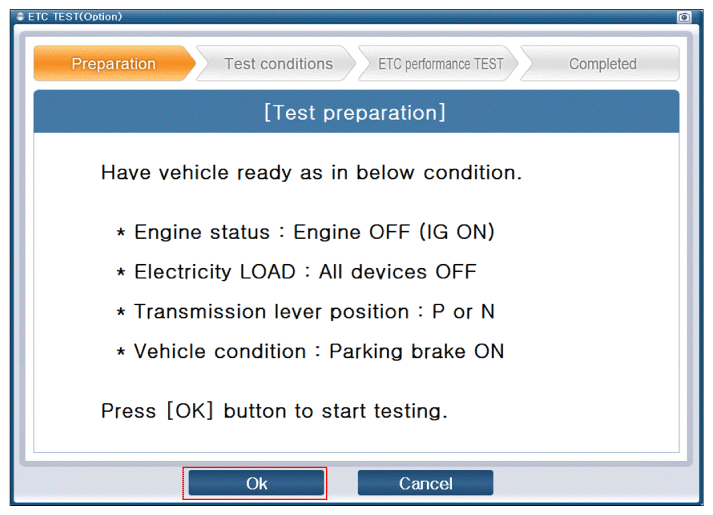

Fig 2: Scantool Display - ETC Test Preparation
Courtesy of KIA MOTORS AMERICA, INC.

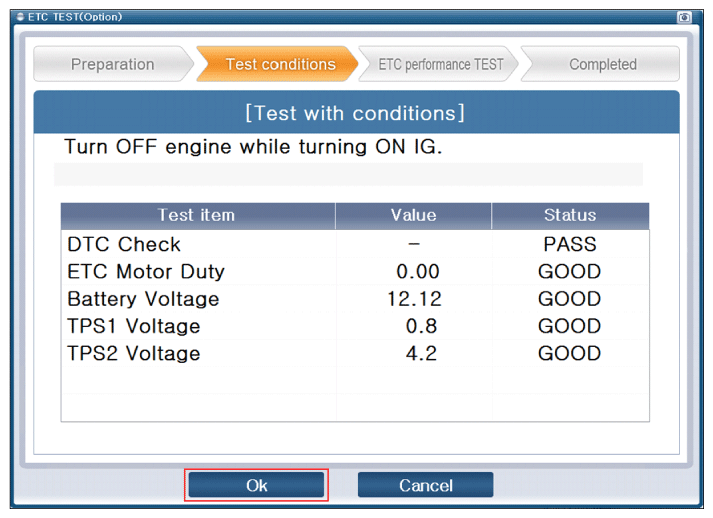

Fig 3: Scantool Display - ETC Test With Condition
Courtesy of KIA MOTORS AMERICA, INC.

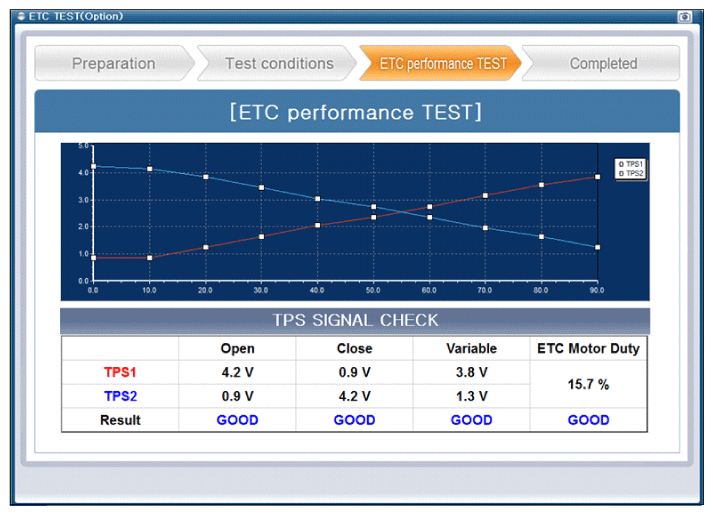

Fig 4: Scantool Display - ETC Performance Test
Courtesy of KIA MOTORS AMERICA, INC.

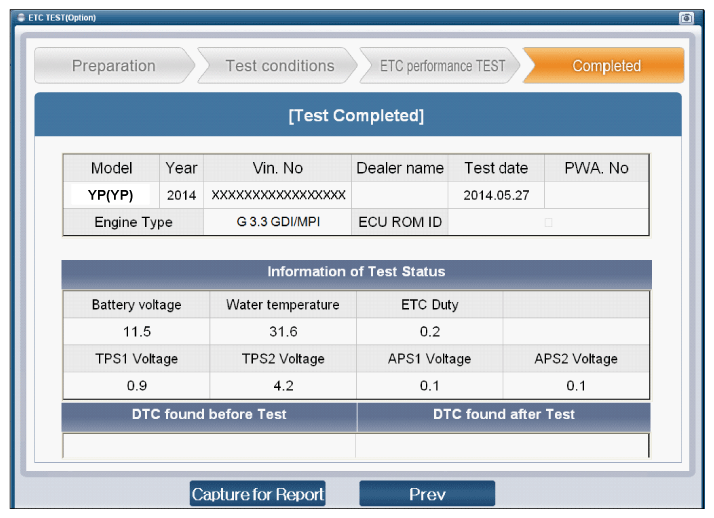

Fig 5: Scantool Display - ETC Test Completed
Courtesy of KIA MOTORS AMERICA, INC.
When the "ETC TEST(Option)" has been finished perfectly, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
