Signal Waveform & Data

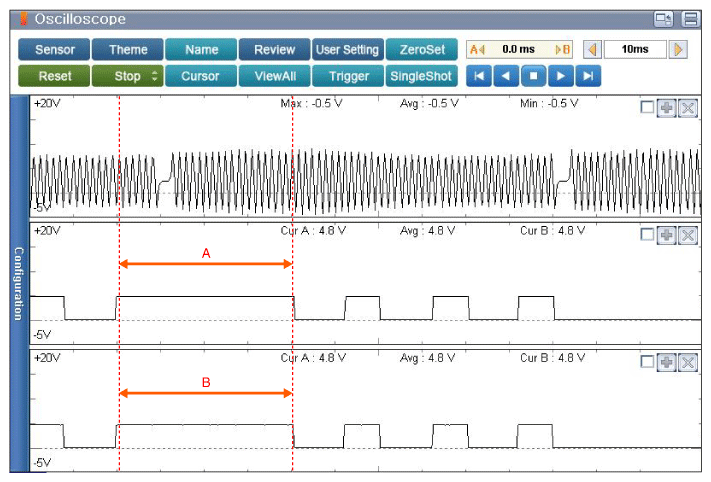

Fig 1: Scantool Display - Normal Waveforms Of CKPS, CMPS-IN/EX At Engine Idle

Courtesy of KIA MOTORS AMERICA, INC.

A: CKPS & CMPS syncronization - There are about 8 teeth between the CKPS missing tooth and CMPS signal.

B: CKPS & CMPS syncronization - There are about 1 tooth between the CKPS missing tooth and CMPS signal.
