Monitor GDS Data

1. Connect GDS to Data Link Connector (DLC).
2. Ignition "ON"
3. Monitor "Diagnostic Trouble Codes (DTC)" with GDS.

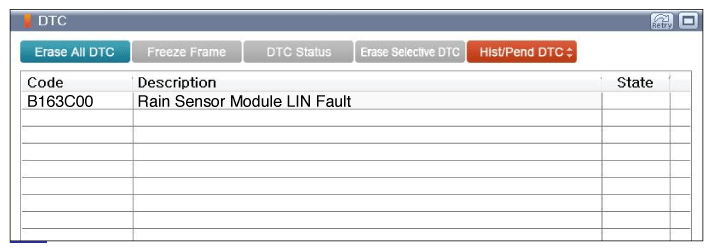

   Fig 1: Screen Display - DTC Description

   Courtesy of KIA MOTORS AMERICA, INC.
4. Is DTC status displayed as Present?

YES

• Go to "Monitor GDS Data" procedure.

NO

• Go to "VERIFICATION OF REPAIR " procedure.
