Repair Procedures: Removal

Turn ignition switch OFF and disconnect the negative (-) battery terminal.
Remove the engine cover.
Disconnect the ignition coil connector (A).

Fig 1: Locating Ignition Coil Connectors
Courtesy of KIA MOTORS AMERICA, INC.
Remove the ignition coil (A).

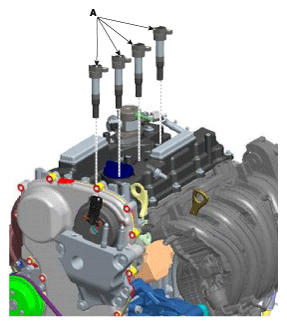

Fig 2: Removing Ignition Coils
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).
Fig 3: Pulling Lock Pin & Pushing Clip
Courtesy of KIA MOTORS AMERICA, INC.
