Components And Components Location: Components

WARNING: This page is about a different car, the 2018 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.

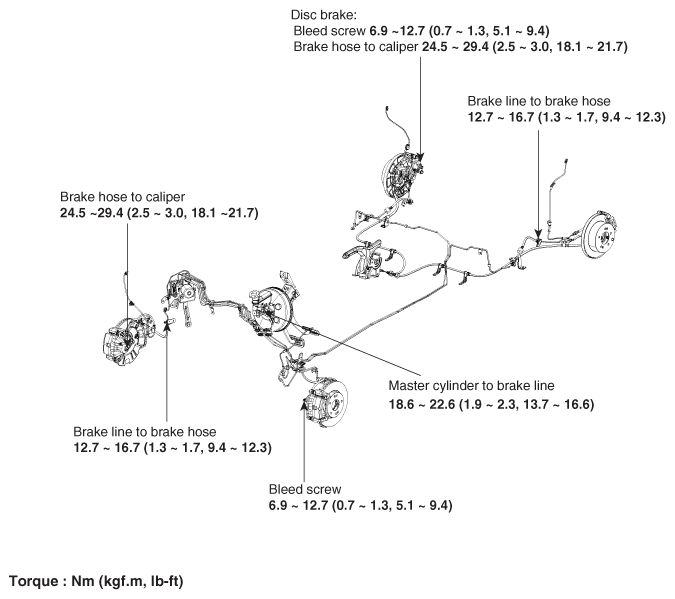

Fig 1: Brake Line Components With Torque Specification

Courtesy of KIA MOTORS AMERICA, INC.

WARNING: When installing brake hose, be sure to comply with the torque specification to prevent twisted hose.
