Circuit Diagram: (M/T)

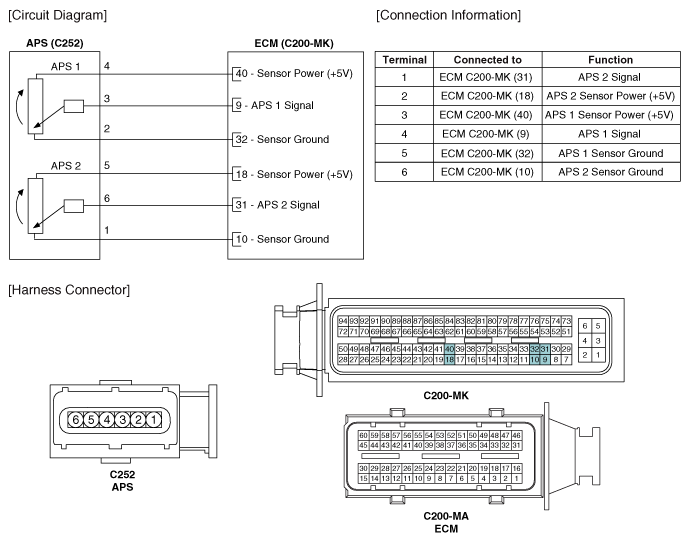

Fig 1: Accelerator Position Sensor Circuit (M/T) And Connector End View
G12239146Courtesy of KIA MOTORS AMERICA, INC.
