Circuit Diagram: (A/T)

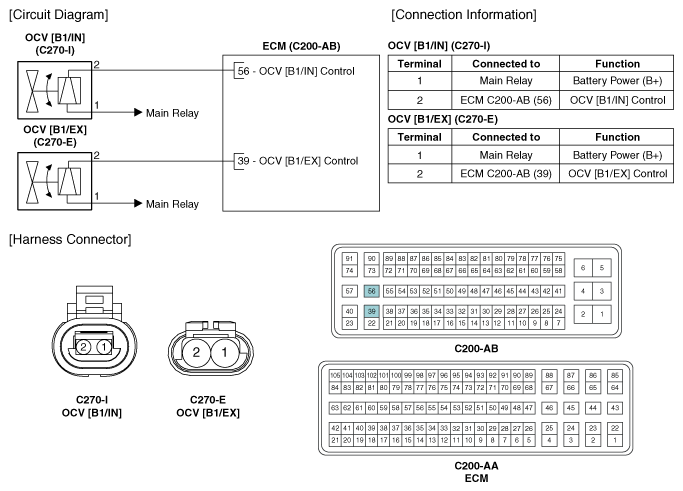

Fig 1: Continuous Variable Valve Timing Oil Control Valve Circuit (A/T) And Connector End View
G12239178Courtesy of KIA MOTORS AMERICA, INC.
