Intake Air Temperature Sensor (IATS)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram
(M/T)

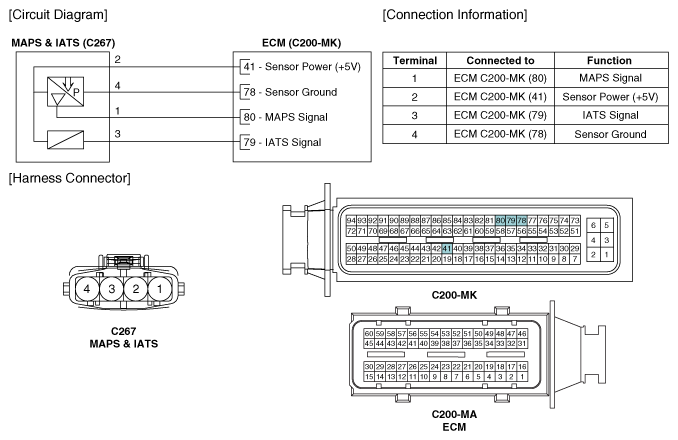

Fig 1: Intake Air Temperature Sensor Circuit (M/T) And Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
(A/T)
Fig 2: Intake Air Temperature Sensor Circuit (A/T) And Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
