Antenna Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. Select the "Antenna Status Check".
    Fig 1: Screen Display - Antenna Status Check
    G12237980Courtesy of KIA MOTORS AMERICA, INC.
  3. After IG ON, select the "Antenna Status Check".

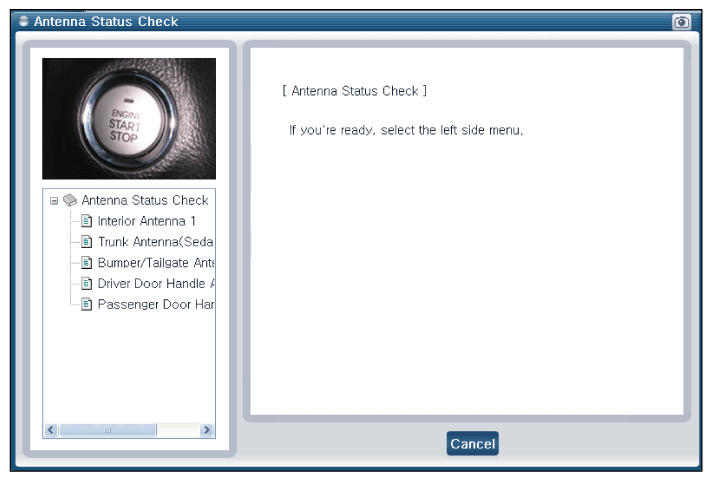

    Fig 2: Screen Display - Antenna Status Check
    G12237981Courtesy of KIA MOTORS AMERICA, INC.
  4. Set the smart key near the related antenna and operate it with a GDS.

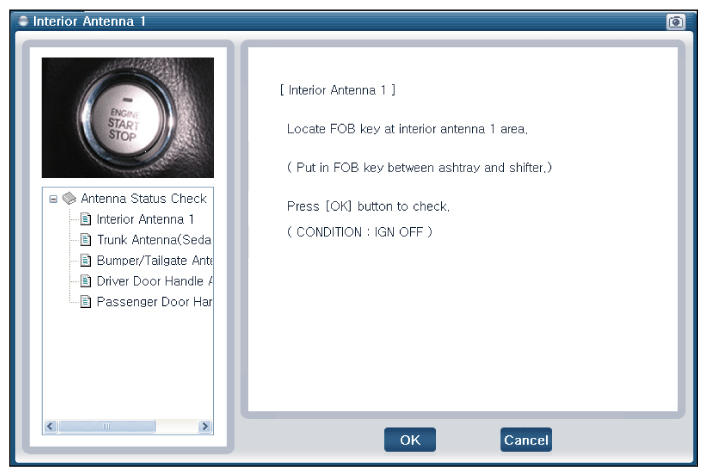

    Fig 3: Screen Display - Interior Antenna 1 (1 Of 2)
    G12237982Courtesy of KIA MOTORS AMERICA, INC.

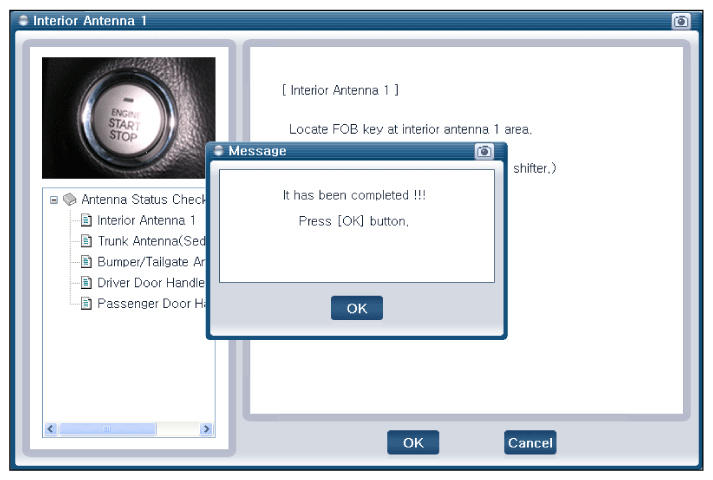

    Fig 4: Screen Display - Interior Antenna 1 (2 Of 2)
    G12237983Courtesy of KIA MOTORS AMERICA, INC.
  5. If the smart key runs normal, the related antenna, smart key (transmission, reception) and exterior receiver are normal.
  6. Antenna status
    • INTERIOR Antenna
    • Trunk antenna
    • BUMPER/Antenna
    • DRV_DR Antenna
    • AST_DR Antenna
