Current Data Inspection

Ignition "ON" or Engine "ON".
Operate Clutch Pedal.
Monitor "Clutch Switch (M/T Only)" and "Clutch is Pushed more than 10%" parameter in Engine System "Current Data " with KDS/GDS.
Specification: Refer to Figure below

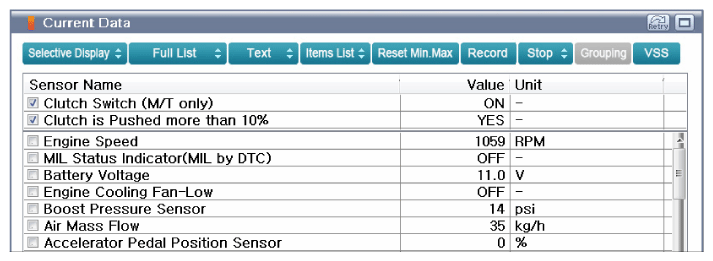

Fig 1: Scantool Display - Clutch Current Data In Engine System When Clutch Not Pushed
Courtesy of KIA MOTORS AMERICA, INC.

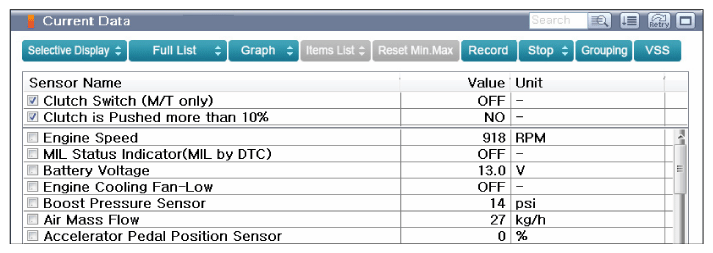

Fig 2: Scantool Display - Clutch Current Data In Engine System When Clutch Pushed
Courtesy of KIA MOTORS AMERICA, INC.
Is parameter displayed within specification?
YES
- Go to "Wiring Inspection " procedure.
NO
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
- Repair or replace as necessary and then go to "Verification Of Vehicle Repair " procedure.
