Signal Waveform & Data

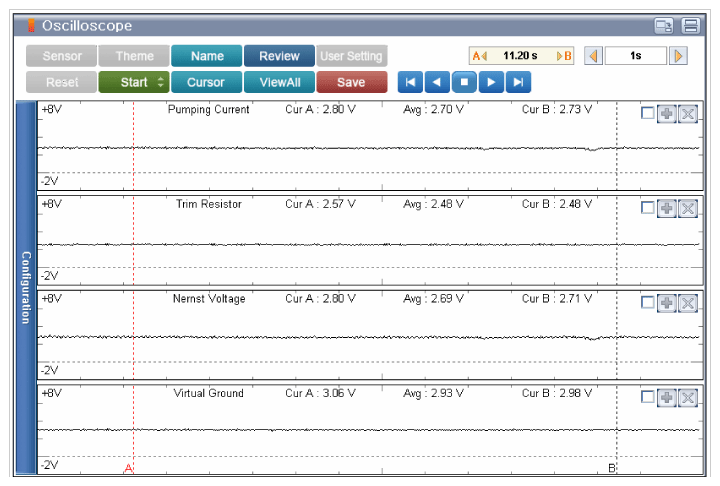

Fig 1: Scantool Display - Engine Idle After Warm-Up

Courtesy of KIA MOTORS AMERICA, INC.

CH.1 - Pumping Current - Approx. 2.7V

CH.2 - Trim Resistor - Approx. 2.5V

CH.3 - Nernst Voltage - Approx. 2.7V

CH.4 - Virtual Ground - Approx. 2.9V

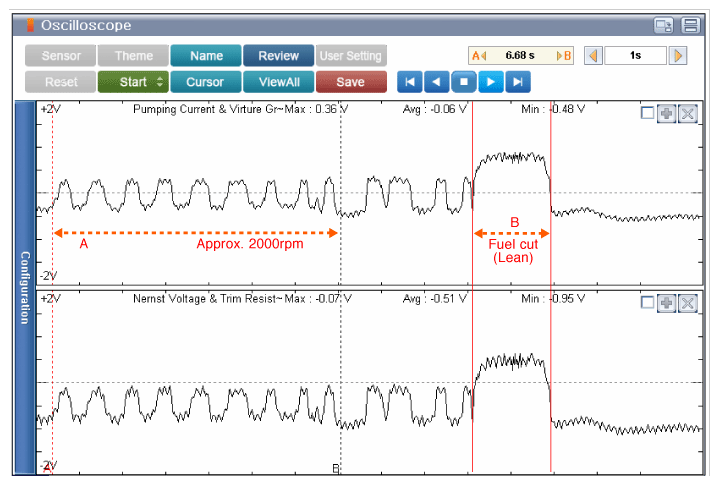

Fig 2: Scantool Display - Signal Waveform & Data (Approx 2000RPM & Fuel Cut)

Courtesy of KIA MOTORS AMERICA, INC.

A: Approx. 2000RPM

CH.1 - Pumping Current & Virtual Ground: - 0.5 ~ 0.4V

CH.2 - Nernst Voltage & Trim Resistor: -1.0 ~ -0.0V

B: Fuel Cut

CH.1 - Pumping Current & Virtual Ground: Approx. 0.89V

CH.2 - Nernst Voltage & Trim Resistor: Approx. 0.64V

* Test Method: Connect Channel A positive probe to Pumping Current and Channel A negative probe to Trim Resistor. Connect Channel B positive probe to Nernst Voltage and Channel B negative probe to Virtual Ground.
