Engine Control System Diagnosis - 1.6L (3 Of 3)
›
DTC P2290: Injector Control Pressure Too Low
›
Specification
›
Signal Waveform & Data
Signal Waveform & Data

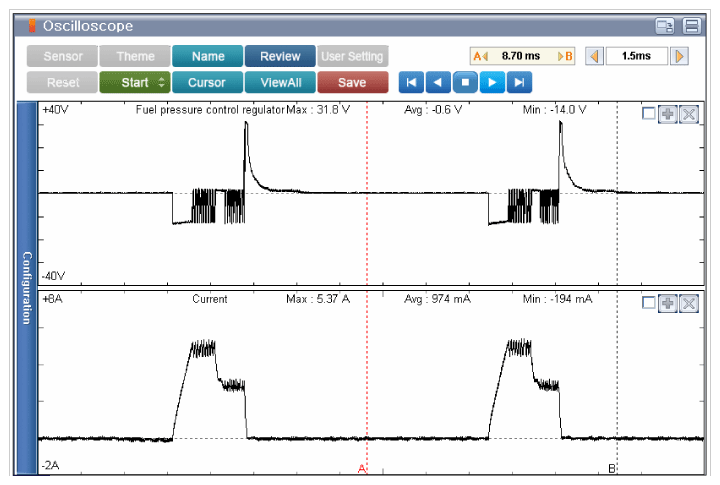

Fig 1: Scantool Display - Engine Idle After Warm-Up
Courtesy of KIA MOTORS AMERICA, INC.

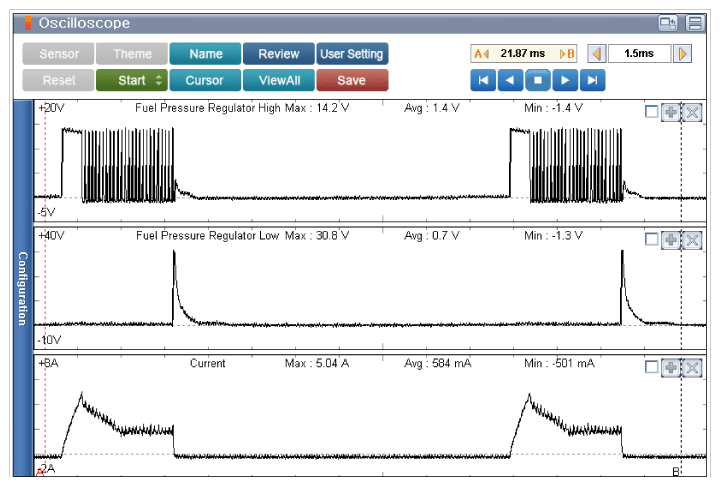

Fig 2: Scantool Display - Signal Waveform & Data (Approx 2000RPM)
Courtesy of KIA MOTORS AMERICA, INC.

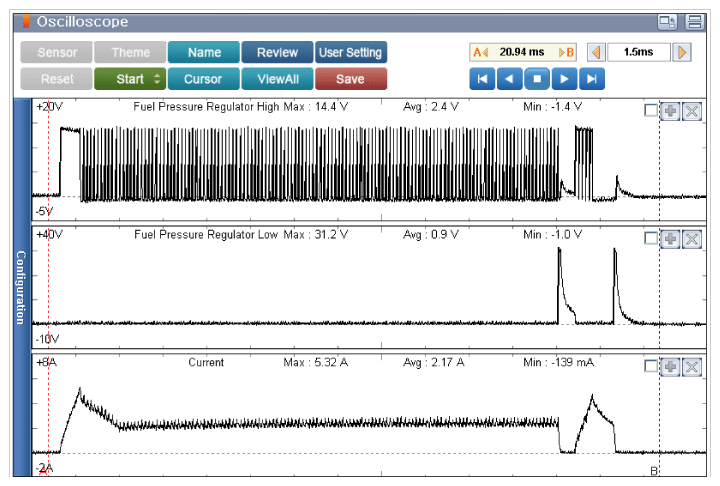

Fig 3: Scantool Display - Signal Waveform & Data (Approx 3000RPM)
Courtesy of KIA MOTORS AMERICA, INC.
