Compressor Diagnosis Tool (SST040 REV1)

Publication date: 2021-10-29
Reference number: SST040 REV1
Supersedes refnos: SST040, SST040 REV 2

COMPRESSOR DIAGNOSIS TOOL

TECHNICAL SERVICE BULLETIN

Reference Number(s): SST040 Rev 2, Date of Issue: October 29, 2021

KIA:	All Models
GROUP:	Special Service Tools

SERVICE INFORMATION

NOTE: This bulletin has been revised to include additional information. New/revised sections of this bulletin are indicated by a black bar in the margin area.

This bulletin provides information related to an SST to assist with diagnosing A/C concerns on vehicles equipped with a variable displacement Electronic Control Valve (ECV) type A/C compressor with or without magnetic clutches.

Refer to the applicable shop manual HVAC section for the vehicle, and follow the procedures outlined in this bulletin whenever the vehicle experiences the following symptoms:

A/C does not get cold enough
The high and/or low sides show abnormal system pressure on the manifold gauge or KDS data.

NOTE: High side pressure should be greater than 130 PSI (896kpa, 9.1kg/cm2) during MAX A/C use.

The A/C Compressor Diagnosis Kit applies only to vehicles equipped with ECV type compressors. Refer to page 7 for applicable models and connector configuration.

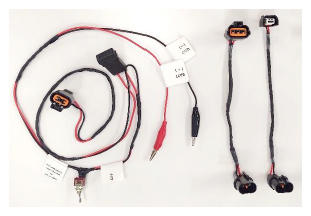

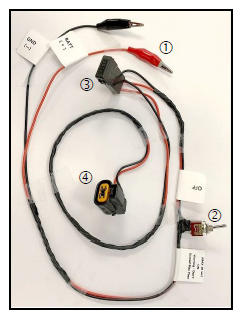

Part Name	Part No	Figure
(1) Battery Terminal Connections	07140100001

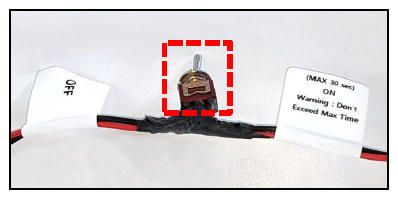

(2) ON/OFF Switch
(3) In-Line Fuse (10A)
(4) 2-Pin Connector (to compressor/ECV)

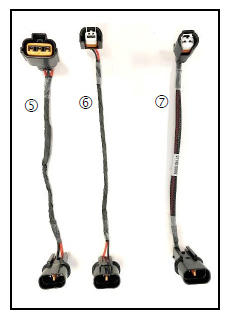

(5) 2-Pin to 3-Pin Adapter Lead
(6) 2-Pin to 2-Pin Adapter Lead
(7) 2-Pin to 2-Pin Adapter Lead	0714010002

DIAGNOSIS PROCEDURE - A/C PERFORMANCE TEST

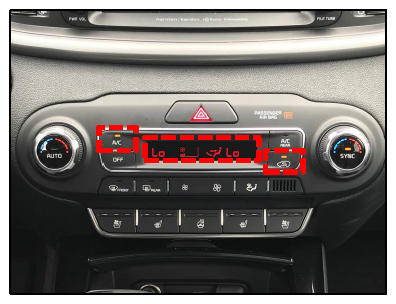

Start the engine, set the blower speed to level 2, and select MAX A/C.
- MAX A/C: A/C 'ON', coldest temperature setting, and recirculated air.

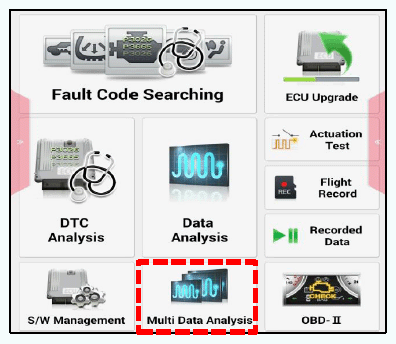

Check system status related to the HVAC system and A/C compressor using the KDS.
- The system status of all related components should be indicating ON.
- If the KDS is showing the compressor status as OFF, then check the various wiring harness and connection points from the A/C Heater Control Unit to the A/C compressor.

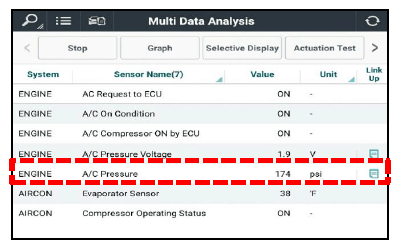

Check the A/C pressure using the KDS.
- If the pressure is more than 130 PSI, the A/C system is operating normally.
  Specification: 130 PSI (896 kPa, 9.1 kg/cm ² ).
- If the pressure is out of specifications, continue the diagnosis by using the A/C Compressor Diagnosis Kit.

DIAGNOSIS KIT CONNECTION

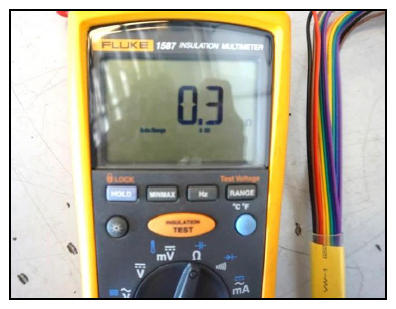

Verify DVOM is in working order.
1. Test DVOM test leads are in working order
2. Set to ohms ('Q')
3. Short leads together
4. Subtract measured value from the value measured later in this bulletin for an accurate resistance reading.

Verify SST is in working order.

Connect both alligator clips together.
Set the switch to the 'OFF' position

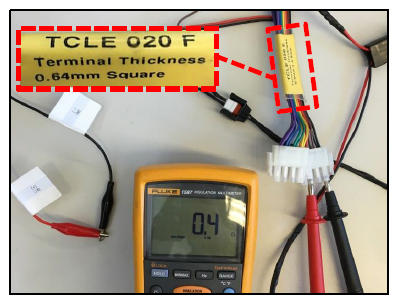

Use connector "TCLE 020 F" and measure the resistance between terminal one (1) and two (2) of the ECV connector.
- Resistance should be O.L. If not, check for short in SST.

Set the switch to the "ON" position.

Resistance should be less than 1 ohm . If not, check for open in the SST such as an open fuse or defective switch.

If SST is OK, proceed to step 3.

NOTE: Turn the engine OFF before disconnecting and reconnecting the A/C Compressor Diagnosis Kit.

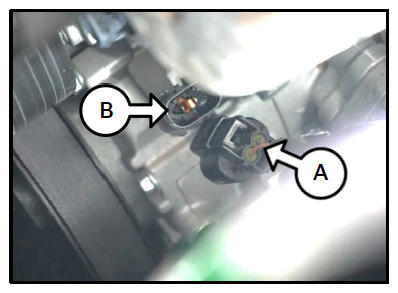

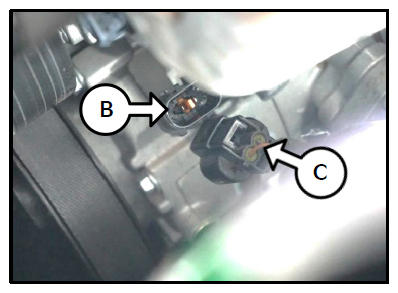

Disconnect the main wiring harness (A) at the A/C compressor connection (B).
NOTE: Two (2) pin shown.
Connect the A/C Compressor Diagnostic Kit (C) to the A/C Compressor harness (B).
NOTE:
- For compressors equipped with a pigtail harness from the ECV, connect the Main Compressor Harness from the kit to the ECV pigtail harness.
- For compressors not equipped with a pigtail harness from the ECV, connect directly to the ECV using the applicable extension harness.

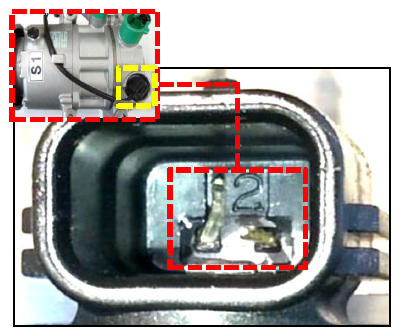

NOTE: Refer to the Applicable Vehicle chart found on Page 7 for the connector configuration and type. Connection configuration and type are subject to change.

ECV RESISTANCE TEST

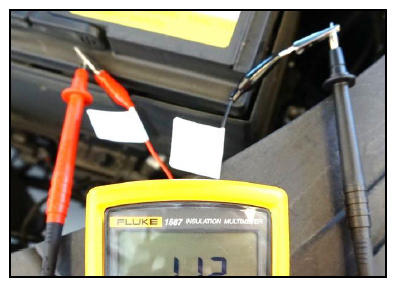

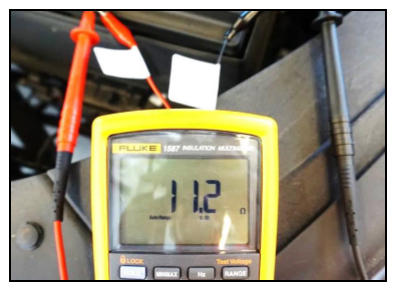

Connect the B+ (red) and the negative (black) power lead clips in the diagnosis kit to a DVOM set to ohms ('Ω').
Turn the diagnosis kit switch to the 'ON' position.
Check and record the ECV resistance using the DVOM.
- Normal resistance: 10.1 - 11.1Ω when the ambient temperature is 77°F.
- Resistance may vary according to the engine compartment temperature.
NOTE: Acceptable normal resistance range: 8 - 14Ω

NOTE: Replace the ECV if the resistance is either less than 8Ω or greater than 14 Ω.(Refer to the applicable parts catalog for the latest service part number.) Follow service manual procedure to replace.
Repeat the A/C Performance Test after replacing the ECV.

A/C PRESSURE TEST

NOTE: Before starting step 1:

Turn the engine 'OFF'.
Confirm that the diagnosis kit switch is in the 'OFF' position.

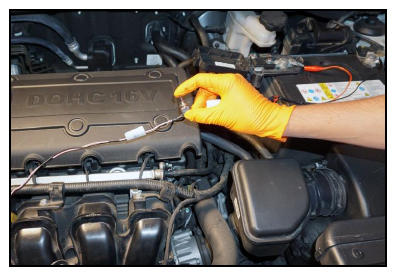

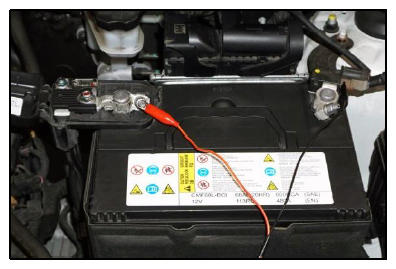

Connect the diagnosis kit to the vehicle battery terminal as follows:
- Connect the red clip to the B+ terminal.
- Connect the black clip to the B-terminal.
Start the engine, set the blower speed to level 2, and select MAX A/C.
- MAX A/C: A/C 'ON', coldest temperature setting, and recirculated air.
Turn the diagnosis kit switch to the ON position and check and record the A/C pressure.
NOTE: The following specifications are normal pressures when the ambient temperature is 77°F.
- Using a manifold gauge: Low side range is 20-40 PSI, high side range is 140-190 PSI.
- Using KDS: A/C pressure should read 130 PSI (896 kPa, 9.1 kg/cm²⁾ .

  NOTE: Do not run the A/C with the diagnosis kit switch in the 'ON' position more than 30 seconds. The evaporator core or expansion valve may freeze and alter the pressure gauge reading.
If the pressure is normal using the diagnosis kit (even though it did not pass "Section I. A/C Performance Test"):
- Check the various wiring harness and connection points from the A/C Heater Control Unit to the A/C compressor.
- Repair any damaged wiring or connections along the wiring harness.
- Repeat A/C Pressure Test to verify repair.
If out of specification or erratic pressures are showing on the manifold gauge or the KDS:
- Evacuate and Recharge the refrigerant and record the results. Perform leak testing if refrigerant level is out of specification.
- Check A/C line for blockage if there are no leaks found.
- Check the radiator cooling fan for proper operation.
- Repeat A/C Pressure Test to verify repair.
If the test results lead to an out-of-spec compressor:
- Check the ECV pins/terminals for bent or poor contact condition before replacing the compressor.
- Replace the compressor only if no other faults are found and the compressor is not operational.
After installation of the new compressor, verify operation by performing the A/C Performance Test.

AFFECTED VEHICLE RANGE

Model	Production Date Range	ECV Connector
Cadenza (VG)	2014 - 2016MY	2 Pin
Cadenza (YG)	2017 - 2021MY	2 Pin
Carnival (KA4)	2022MY~	3 Pin
Forte (TD)	2013MY	2 Pin
Forte (YD)	2014 - 2018MY	2 Pin
Forte (YDm)	2017 - 2018MY	2 Pin
Forte (BDm)	2019 - 2022MY	2 Pin
K5 (DL3a)	2021MY~	3 Pin
K900 (KH)	2015 - 2018MY	2 Pin
K900 (RJ)	2019 - 2020MY	3 Pin
Optima (TF/QF)	2011 - 2015MY	2 Pin
Optima (JF)	2016 - 2018MY	2 Pin
Optima (JFa)	2016 - 2020MY	2 Pin
Rio (UB)	2012 - 2017MY	2 Pin
Rio (SC)	2018MY~	2 Pin
Sedona (YP)	2015 - 2021MY	2 Pin
Seltos (SP2)	2021MY~	3 Pin
Sorento (XMa)	2011 - 2015MY	2 Pin
Sorento (UMa)	2016 - 2018MY	2 Pin
Sorento (UMa)	2019 - 2020MY	3 Pin
Sorento (MQ4)	2019 - 2020MY	3 Pin
Soul (AM)	2011 - 2013MY	2 Pin
Soul (PS)	2014 - 2019MY	2 Pin
Soul (SK3)	2020 - 2022MY	3 Pin
Sportage (SL)	2011 - 2016MY	3 Pin
Sportage (QL)	2017 - 2019MY	2 Pin
Sportage (QL)	2020 - 2022MY	3 Pin
Stinger (CK)	2018 - 2021MY	2 Pin
Stinger (CK)	2022MY~	3 Pin
Telluride (ON)	2020MY~	3 Pin

NOTE: Connector configuration and type listed in the chart may be subject to change.

REQUIRED TOOL

Tool Name	Tool Number	Figure	Qty	Comments
A/C Compressor Diagnosis Kit	07140100001		1	Auto-shipped to Dealer. For additional tools or Kit components, contact Snap-On Business
A/C Compressor Diagnosis Kit Adapter	0714010002		1	Solutions at 888-542-1011.
